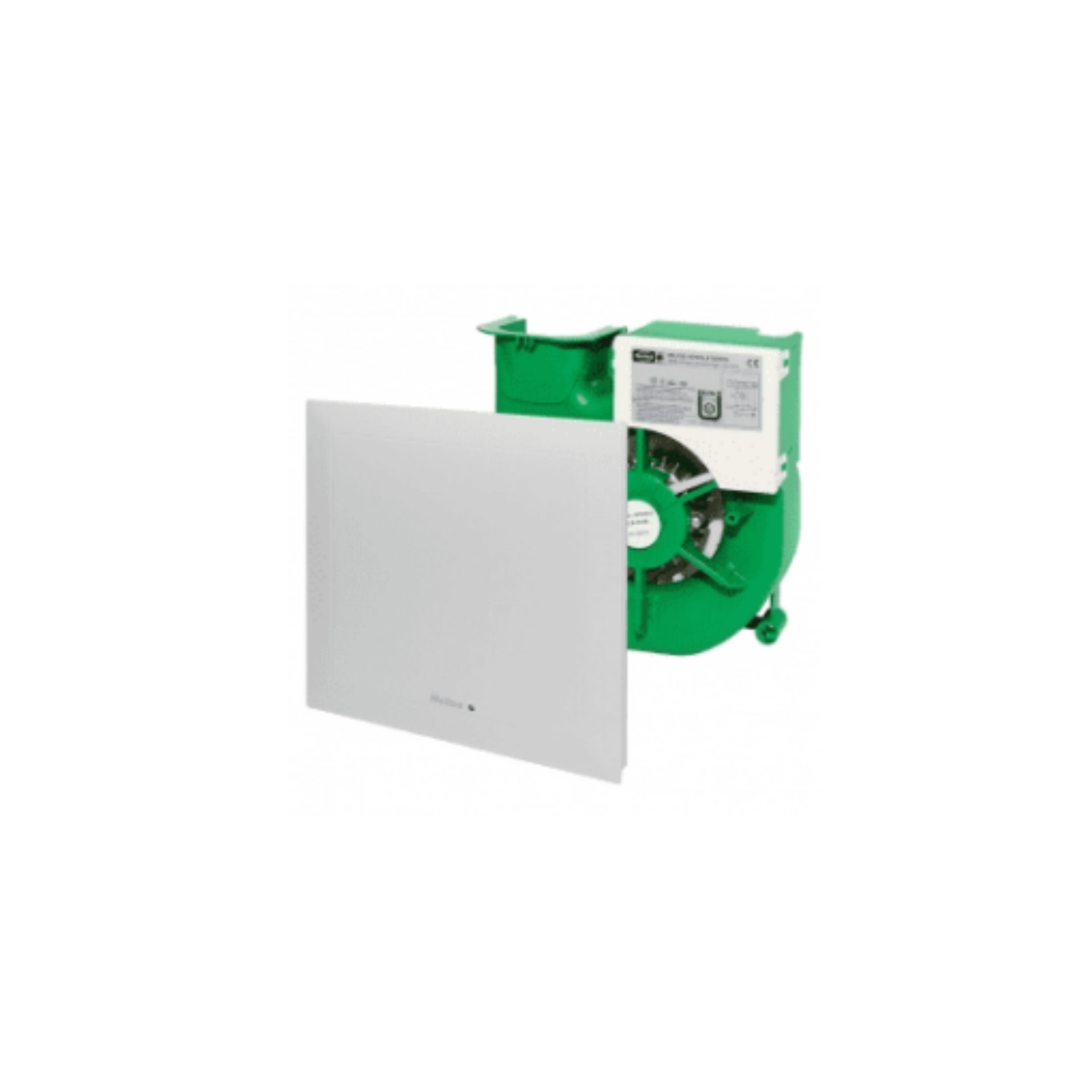

Helios Fans ELS‑V 60

The Helios ELS‑V 60 is a ready-to-use fan insert designed to provide reliable ventilation with an airflow capacity of 60 m³/​h. It features a flat alpine white inner fascia and incorporates ultraSilence® technology to ensure quiet operation, making it well-suited for showers, bathrooms, and toilets.

Equipped with a permanent filter and a filter cleaning display as standard, maintenance is simple and efficient. The fan includes an integrated plug connection for straightforward electrical installation. It is fully insulated to protection class II and rated IP X5 for water resistance, permitting safe installation in zone 1 of wet rooms.

Powered by a maintenance-free, energy-saving ball-bearing motor operating at 230 V~, 50 Hz, with a power consumption of 18 W, the unit produces a sound power level of 39 dB(A) and a sound pressure level of 35 dB(A) when installed with the ELS-GU enclosure for side air discharge.

The fan is manually controlled via a light switch, and in windowless rooms, a run-on time should be ensured using a time-delay switch accessory. All performance and noise data conform to DIN standards 24163, 24166, 45635, and 44974, ensuring dependable, quiet, and efficient ventilation for your wet room.
