Helios Fans ELS‑V 100÷60÷35

Helios

Helios Fans ELS-V 100/60/35

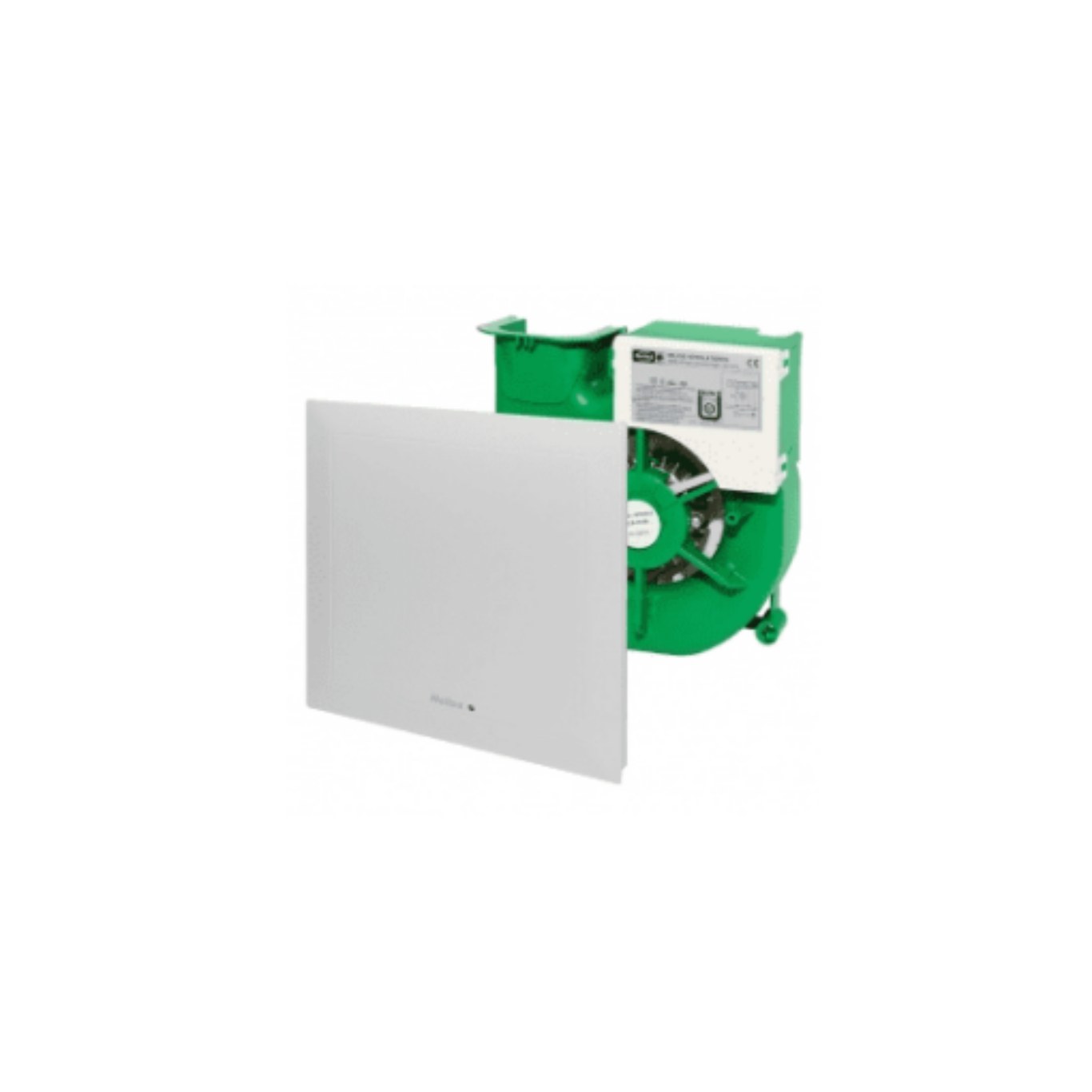

The Helios ELS‑V 100÷60÷35 fan unit offers versatile ventilation with three adjustable speeds — 100, 60, and 35 m³/​h — ideal for trickle, medium, and boost ventilation needs in apartments, bathrooms, and kitchens. It is supplied complete with a flat white fascia and incorporates ultraSilence® technology, ensuring whisper-quiet operation.

This unit includes a permanent filter and a dirt filter indicator to facilitate timely maintenance. Its integrated quick plug connector simplifies electrical installation. The fan has protection class II insulation and an IP X5 rating, making it suitable for installation in zone 1 of bathrooms.

Powered by a maintenance-free, energy-efficient ball bearing motor operating at 230 V/1 ph./50 Hz, the unit consumes between 9 W and 29 W depending on speed. Noise levels vary from 26 dB(A) to 47 dB(A) sound pressure, and 30 dB(A) to 51 dB(A) sound power, measured with a 10 m² equivalent absorption surface in combination with the ELS-GU casing and lateral discharge.

Applications include comfortable continuous ventilation in two-room setups or apartment kitchens. The slow and medium speeds can be combined for continuous operation controlled via the DSEL 2 accessory, while manual control is available through the DSEL 3 accessory.

This fan unit complies with DIN 18017, T.3, and meets all relevant DIN standards for performance and sound levels, providing reliable, efficient, and quiet ventilation tailored to your needs.

Prices & Options
Code & Description Price
ELS-V100/60/35 : Helios Fans ELS-V 100/60/35 £160.00 + VAT £192.00
