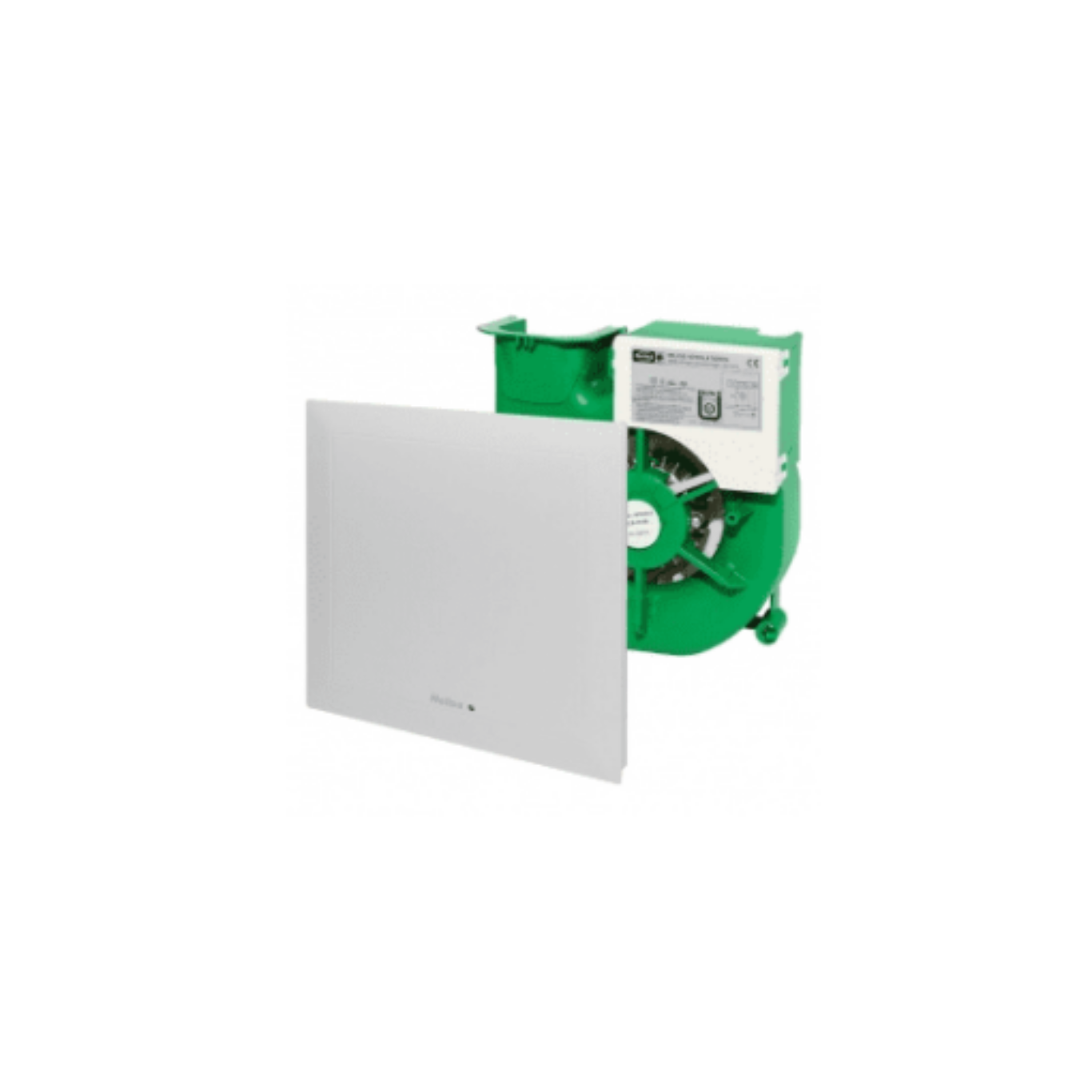

Helios Fans ELS‑V 100

The Helios ELS‑V 100 is a fan unit designed to deliver a volume flow of 100 m³/​h, ideal for simultaneous ventilation of bathrooms, WCs, and kitchen units. It comes ready for operation with a flat inner façade in alpine white and features ultraSilence® technology for quiet performance.

Equipped with a permanent filter and a filter cleaning indicator, the unit ensures easy maintenance and sustained airflow efficiency. The fan includes an integrated plug connection for straightforward electrical installation and offers protective insulation rated at class II with an IP X5 rating, making it suitable for installation in area 1 of wet rooms.

Powered by a maintenance-free, energy-efficient motor with durable ball bearings, it operates at 230 V~, 50 Hz, consuming approximately 29 W. Noise levels are low, with a sound power of 51 dB(A) and sound pressure of 47 dB(A) measured at a 10 m² equivalent absorption area in combination with the ELS-GU casing with side discharge.

This unit complies with DIN 18017, T.3 specifications for ventilation systems and includes an optional run-on function via accessories, providing versatile and reliable ventilation performance in residential settings.
