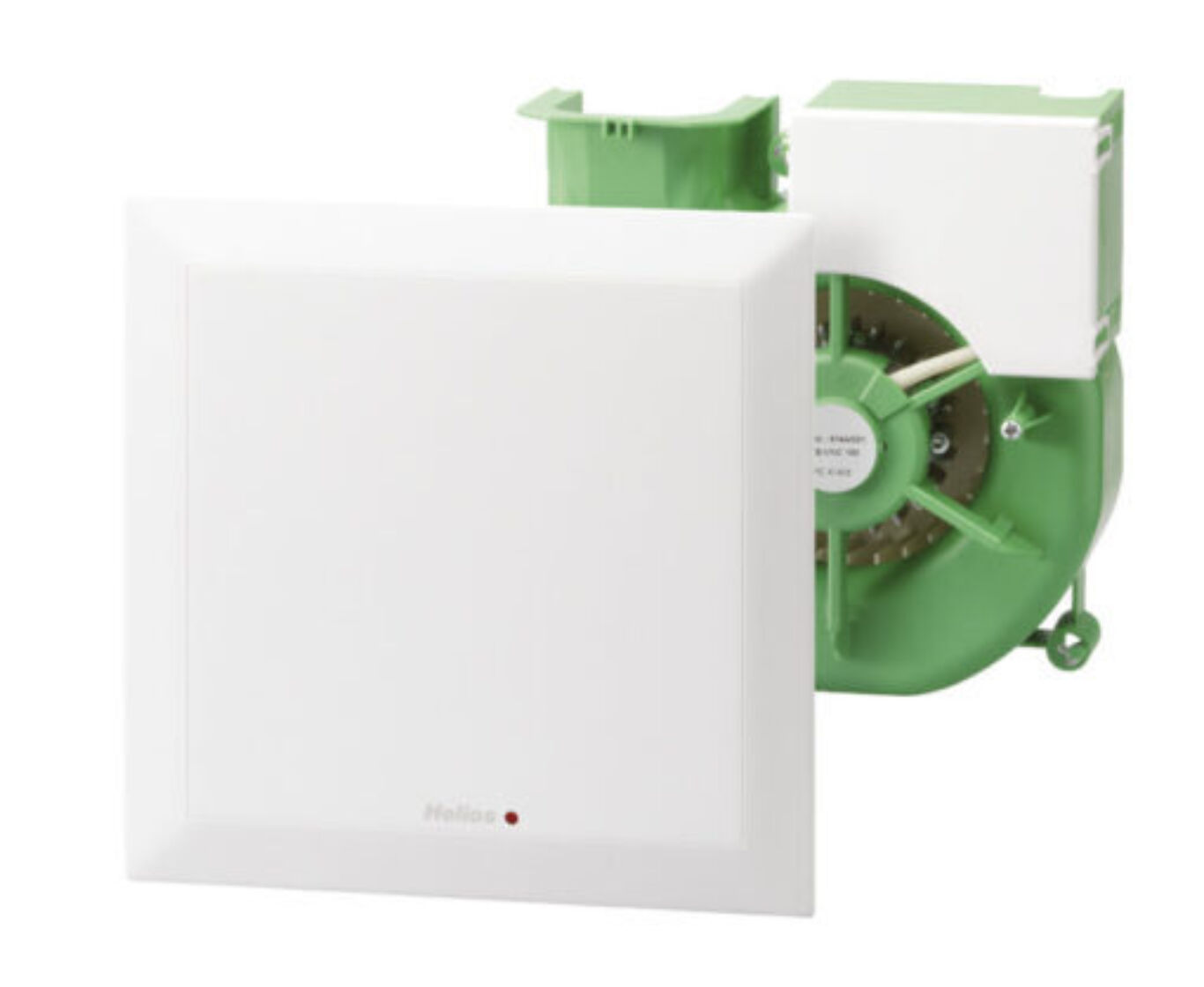

Helios Fans ELS EC 60 N

The Helios ELS EC 60 N is a high-performance fan insert designed with ultraSilence technology, offering two ventilation levels for both demand-driven and continuous background airflow at a maximum of 60 m³/​h. It includes configurable switch-on delay and overrun settings to optimize air circulation based on user needs.

Its spiral casing incorporates an aerodynamically and acoustically optimized radial impeller, ensuring strong pressure output while maintaining minimal noise levels. The fan meets DIN 4109 T.2 standards for sound insulation, making it ideal for noise-sensitive environments.

Installation is simplified with a tool-free slide-in design that also establishes the electrical connection automatically. The integrated EC motor is energy-efficient, housed in a sealed cast aluminium casing, and uses long-life ball bearings rated for 40,000 hours of operation.

The unit features a flat, award-winning façade made from high-quality alpine white plastic, blending seamlessly into modern interiors. A permanent G2-class air filter, located behind a hinged front panel, is dishwasher safe and includes a visual indicator to alert users when cleaning is needed.
