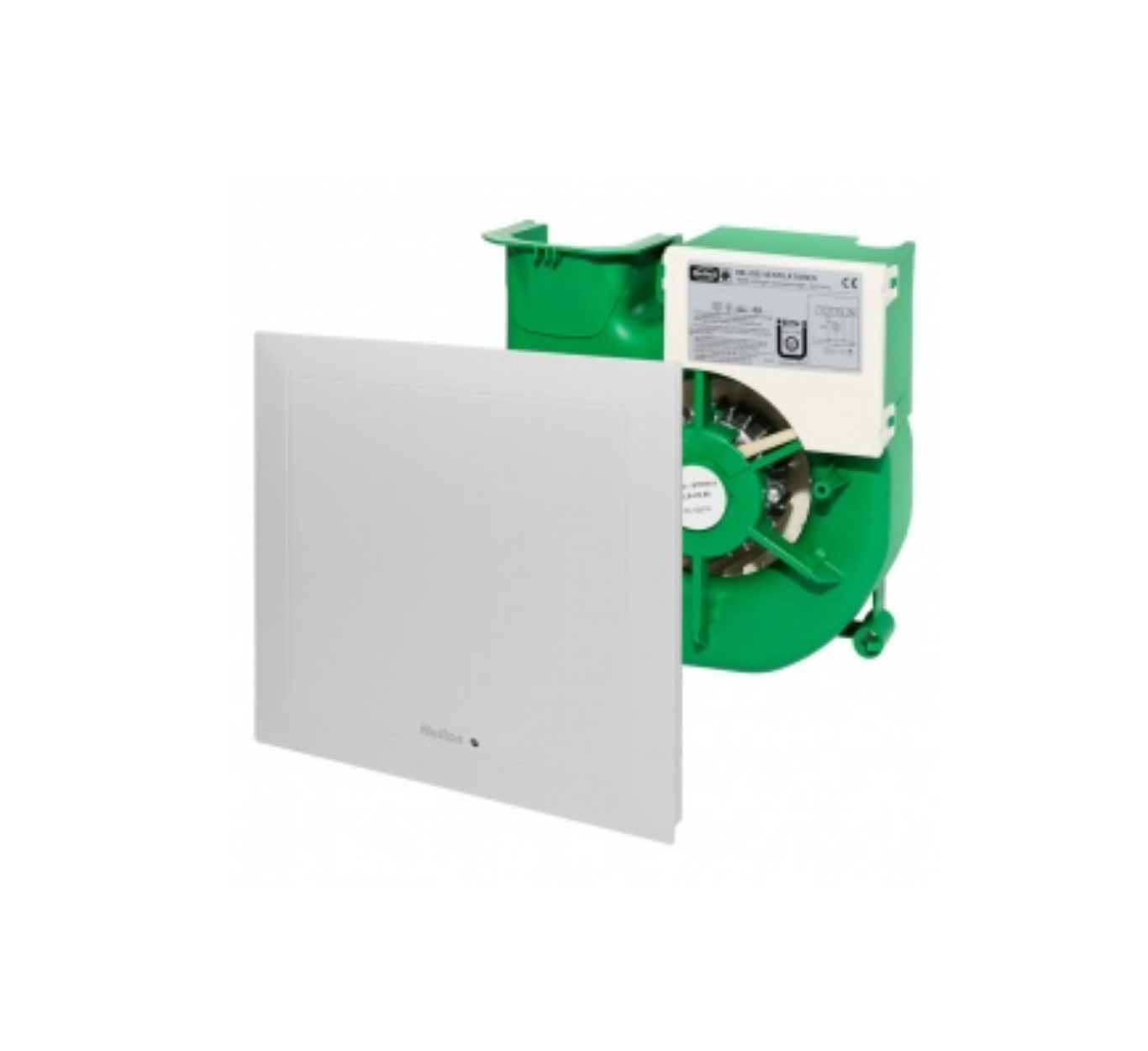

Helios Fans ELS EC 60÷45÷25 F

The Helios ELS EC 60÷45÷25 F is a fan insert featuring an inner façade and electronic humidity control with a volume flow capacity of 60, 45, and 25 m³/​h. It offers power levels with adjustable switch-on delays of 0 or 45 seconds and selectable run-on times of 6, 10, 15, or 21 minutes.

This unit has a spiral casing with an aerodynamically optimized radial impeller, providing high pressure output while maintaining low noise operation through ultraSilence technology.

Installation is tool-free, allowing for easy plug-in mounting with simultaneous electrical connection via the plug-in coupling. The fan uses an environmentally friendly, economical, and energy-efficient EC motor housed in a closed cast aluminium casing. The façade is flat, uniquely designed, and crafted from high-quality alpine white plastic, earning multiple design awards.

The fan is equipped with a permanent filter and an optical filter cleaning indicator as standard, ensuring easy maintenance and optimal performance.
