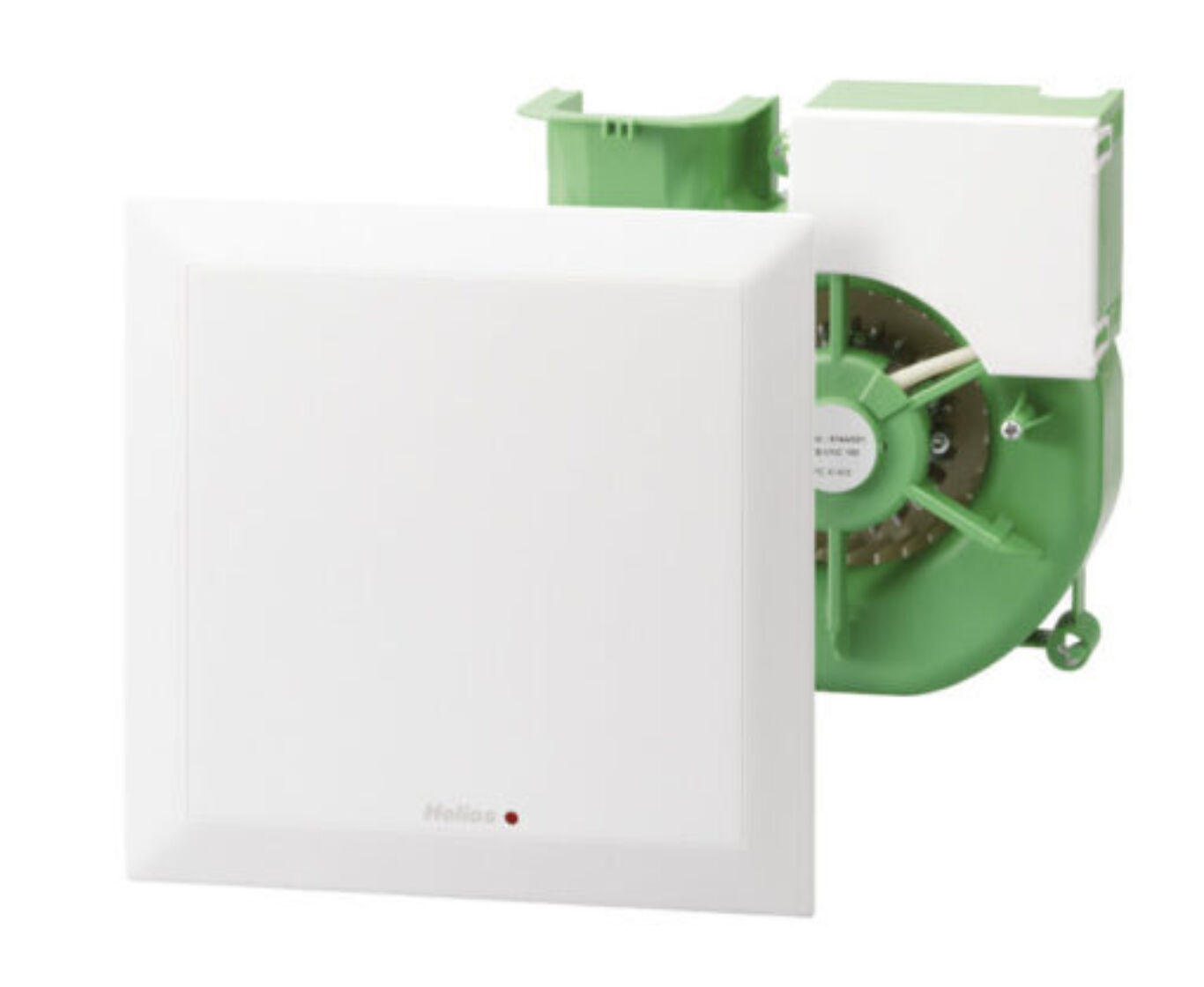

Helios Fans ELS EC 60/35 P

The Helios ELS EC 60/35 P fan insert is equipped with an inner façade and advanced presence detection for automatic operation. It provides three performance levels (60, 45, and 35 m³/​h) suitable for both demand-controlled and basic ventilation, with the sensor operating at the 45 m³/​h level. The fan also includes adjustable switch-on delay, codable overrun, and interval operation settings to adapt ventilation timing to your needs.

Designed with a spiral casing and an aerodynamically optimized radial impeller, this fan offers high pressure performance with minimal noise, compliant with DIN 4109 T.2 sound insulation standards.

Installation is tool-free with a slide-in mechanism that ensures simultaneous electrical connection via plug-in coupling. The energy-efficient EC motor is housed in a sealed cast aluminum enclosure and features maintenance-free ball bearings rated for 40,000 hours of operation.

The fan’s flat, elegant alpine white façade has received multiple design awards and is crafted from high-quality plastic. It includes a permanent G2-class air filter located under a hinged front panel, which is dishwasher-safe. An integrated filter contamination indicator provides a visual alert when cleaning is needed, ensuring sustained air quality and performance.
