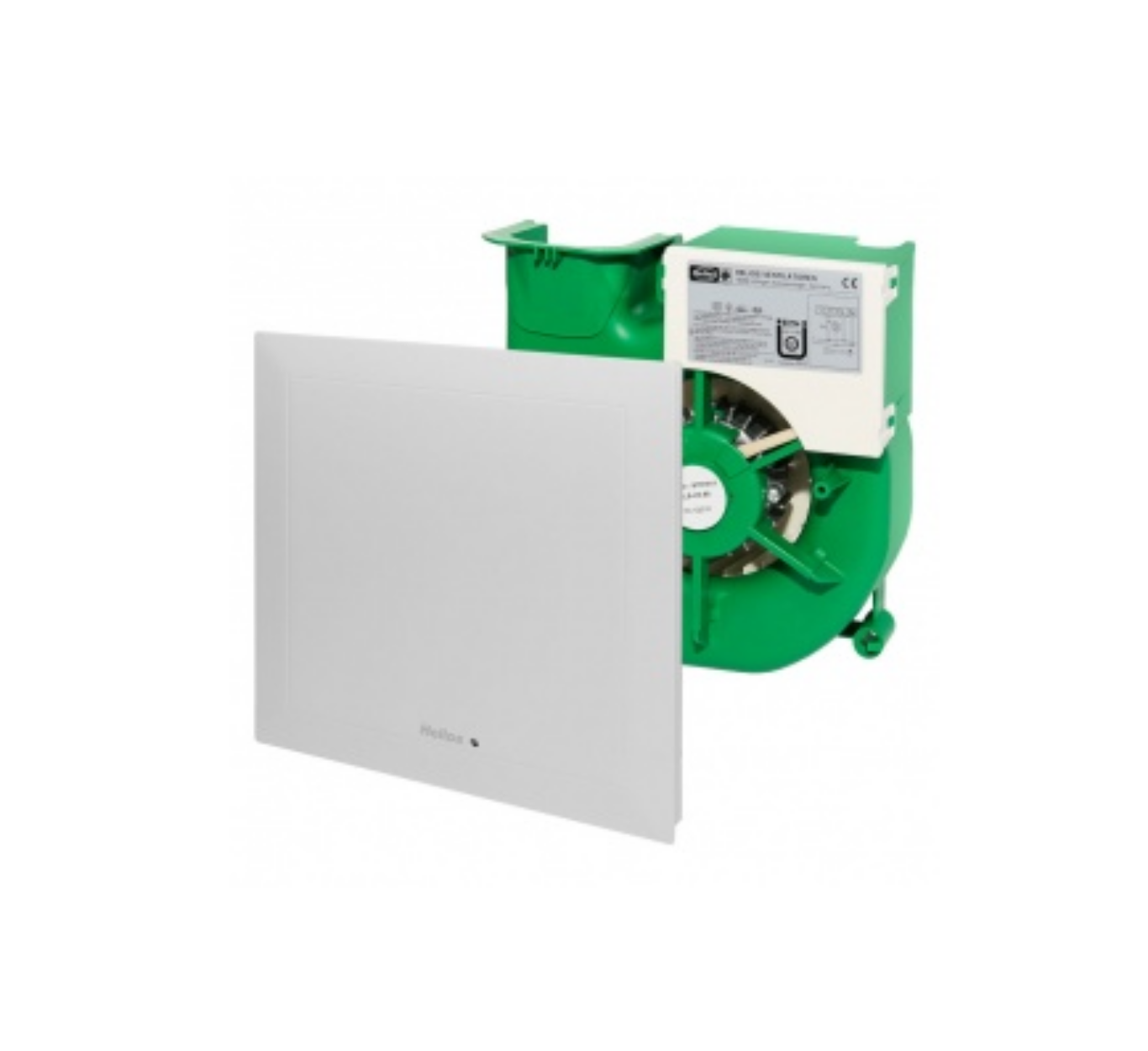

Helios Fans ELS EC 60/35 F

The Helios ELS EC 60/35 F is an advanced fan insert equipped with electronic humidity control for automatic adjustment based on moisture levels. It delivers selectable airflow rates of 60 and 35 m³/​h, offering flexible performance for both basic and demand-based ventilation.

This model includes configurable settings such as a switch-on delay (0 or 45 seconds) and selectable run-on times of 6, 10, 15, or 21 minutes, allowing precise control over operation. The spiral casing houses an aerodynamically optimized radial impeller, delivering high-pressure output with impressively quiet performance, thanks to Helios’s ultraSilence technology.

Installation is quick and simple via tool-free slide-in mounting and integrated electrical contact closure using a plug-in connector. The energy-saving EC motor is environmentally friendly and ensures efficient, low-maintenance operation.

Designed with a sleek, flat inner façade in alpine white, this fan insert combines functionality with award-winning aesthetics. It includes a permanent G2-class air filter, conveniently located behind a hinged front panel and dishwasher safe for easy maintenance. An optical indicator signals when filter cleaning is needed, helping to maintain optimal air quality and system efficiency.
