Helios Fans ELS EC 60/15 NC

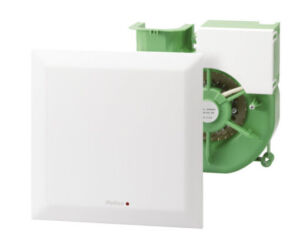

The Helios ELS EC 60/15 NC is a versatile fan insert offering adjustable airflow rates of 60 and 15 m³/​h, designed to meet both demand and background ventilation needs. Featuring ultraSilence technology, it operates with minimal noise while maintaining high pressure through its aerodynamically optimized radial impeller housed in a spiral casing.

This unit includes configurable functions such as a switch-on delay (0 or 45 seconds), overrun time (6, 10, 15, or 21 minutes), and interval operation modes (0, 8, 12, or 24 hours), providing flexible and energy-conscious ventilation control.

Its energy-efficient EC motor is housed in a durable and environmentally friendly enclosure, ensuring long-lasting and low-maintenance performance. Tool-free plug-in installation enables fast setup, with an integrated electrical contact via the plug-in connector.

The internal façade is finished in alpine white, made from high-quality plastic, and has received multiple design awards for its modern, flat profile. A permanent G2-class air filter is located behind the hinged front panel and is dishwasher safe for easy cleaning. A built-in optical indicator alerts users when filter maintenance is required, helping to ensure continuous optimal performance.

Prices & Options
Code & Description Price
ELSEC60/15NC : Helios Fans ELS EC 60/15 NC £207.00 + VAT £248.40
