Helios Fans ELS EC 40÷15÷60 P

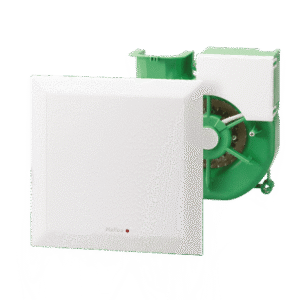

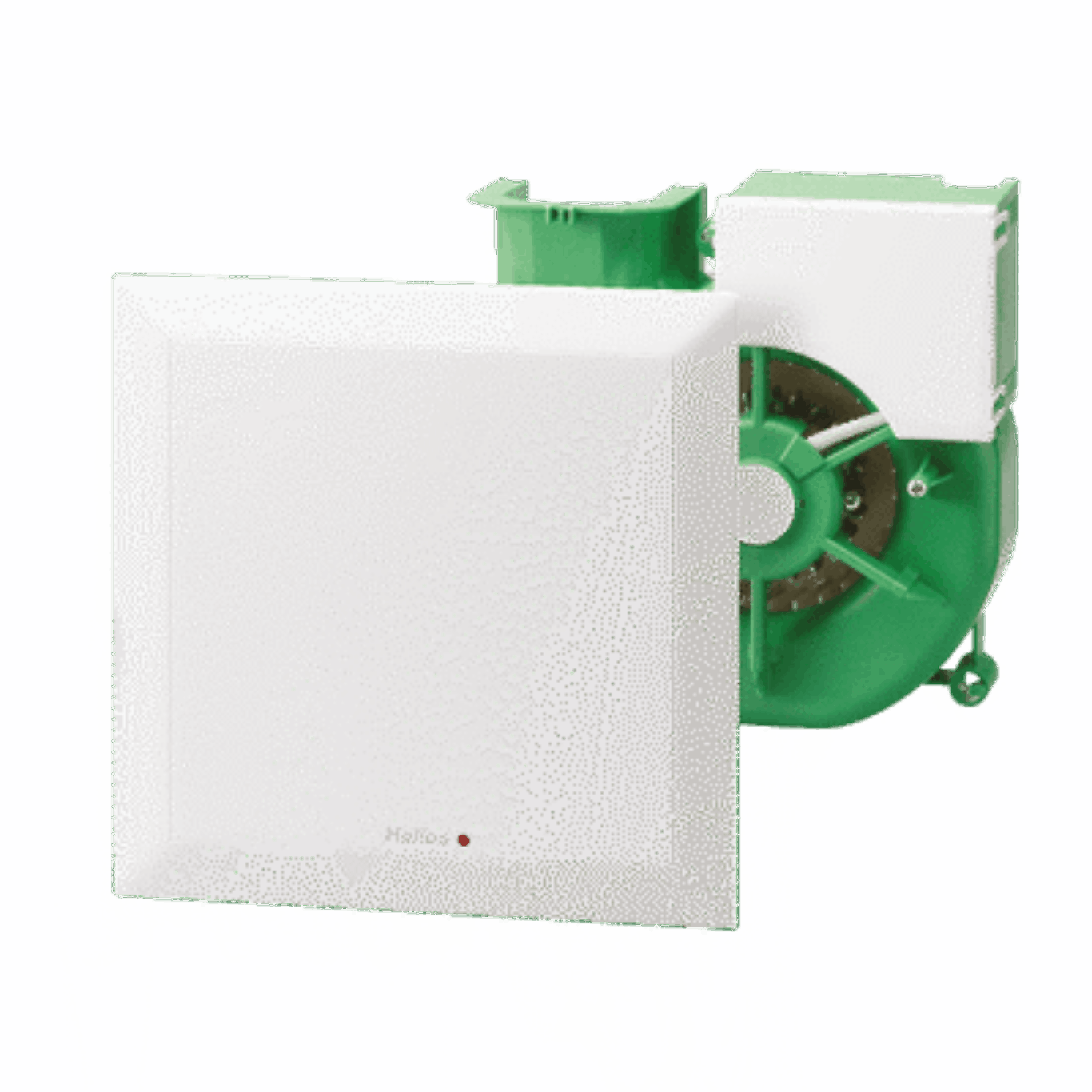

The Helios ELS EC 40÷15÷60 P is a fan insert equipped with a flat façade and a presence detector that controls the sensor function at the 40 m³/​h performance level. It offers three adjustable airflow rates — 40, 15, and 60 m³/​h — for both demand-based and basic ventilation. The unit includes features such as switch-on delay, programmable overrun, and interval operation for flexible control.

Its spiral casing houses an aerodynamically and acoustically optimized radial impeller, providing high pressure output with low noise levels. The design meets sound insulation standards in line with DIN 4109 T.2. Installation is tool-free with a slide-in system and simultaneous electrical contact closure via the plug-in coupling.

Powered by an energy-efficient EC motor enclosed in a cast aluminium housing, this fan requires no maintenance for up to 40,000 operating hours due to sealed ball bearings. The elegant alpine white façade, crafted from premium plastic, has earned multiple design awards. A class G2 permanent air filter is integrated under a hinged front panel and is dishwasher-safe. The filter contamination is monitored by a built-in indicator that provides a visual alert when cleaning is needed.
