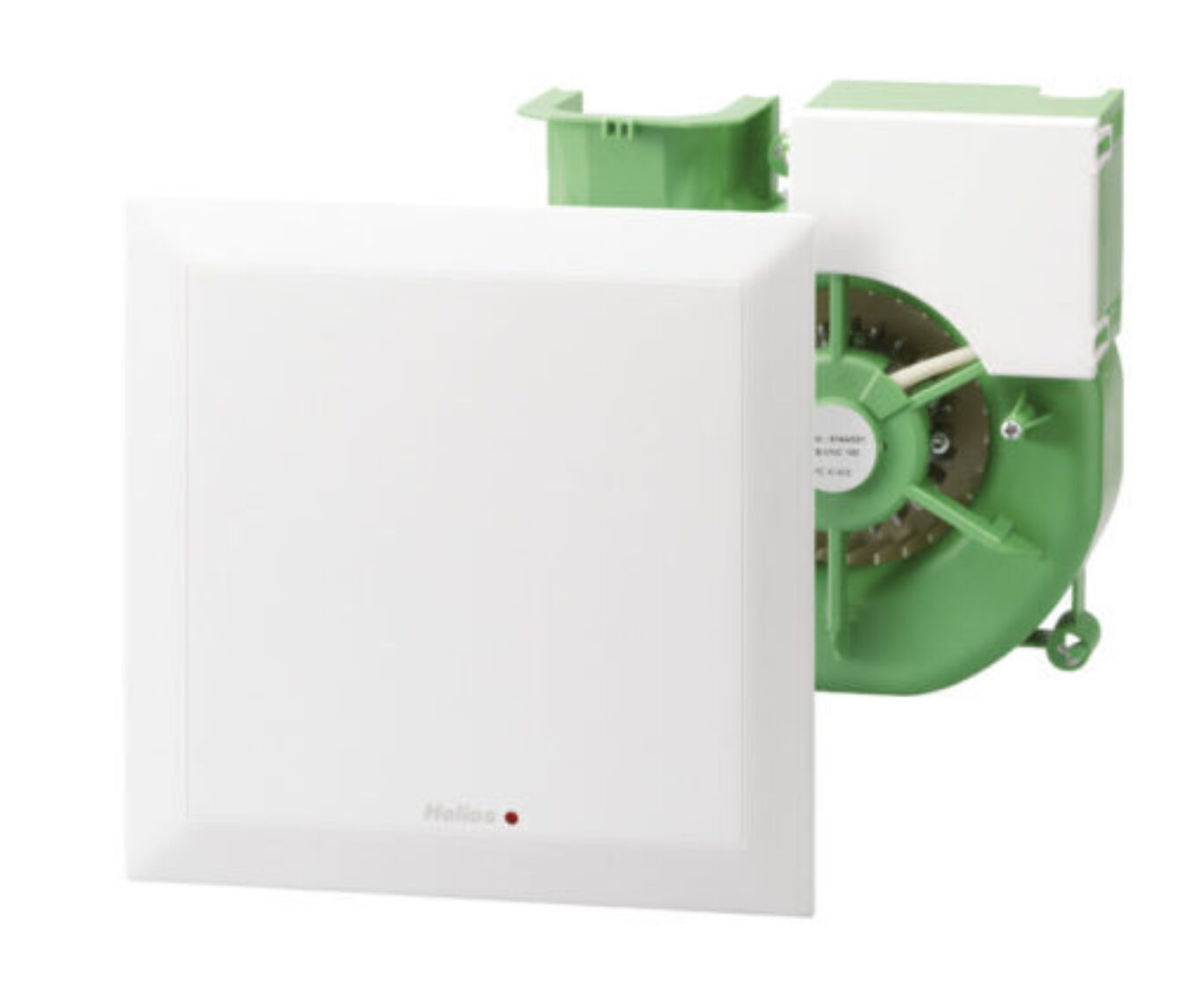

Helios Fans ELS EC 100÷60÷35 N

The Helios ELS EC 100÷60÷35 N is a fan insert equipped with ultra Silence technology, offering two selectable power levels for both demand-driven and basic ventilation with volume flows of 100, 60, and 35 m³/​h. It features a spiral casing housing a radial impeller designed for optimal aerodynamic and acoustic performance, delivering high pressure with minimal noise. The unit includes sound insulation compliant with DIN 4109 Part 2 standards.

Installation is simplified with a tool-free slide-in design, which also ensures simultaneous electrical connection through a plug-in coupling. The energy-efficient EC motor is housed within a sealed cast aluminum casing and utilizes maintenance-free ball bearings rated for up to 40,000 hours of operation.

On the room-facing side, the fan displays a flat, refined façade made from high-quality alpine white plastic, recognized by several design awards. The fan incorporates a G2 class permanent air filter, which is dishwasher safe and housed behind a hinged front panel. Additionally, a built-in filter contamination indicator provides a visual alert when cleaning is needed.
