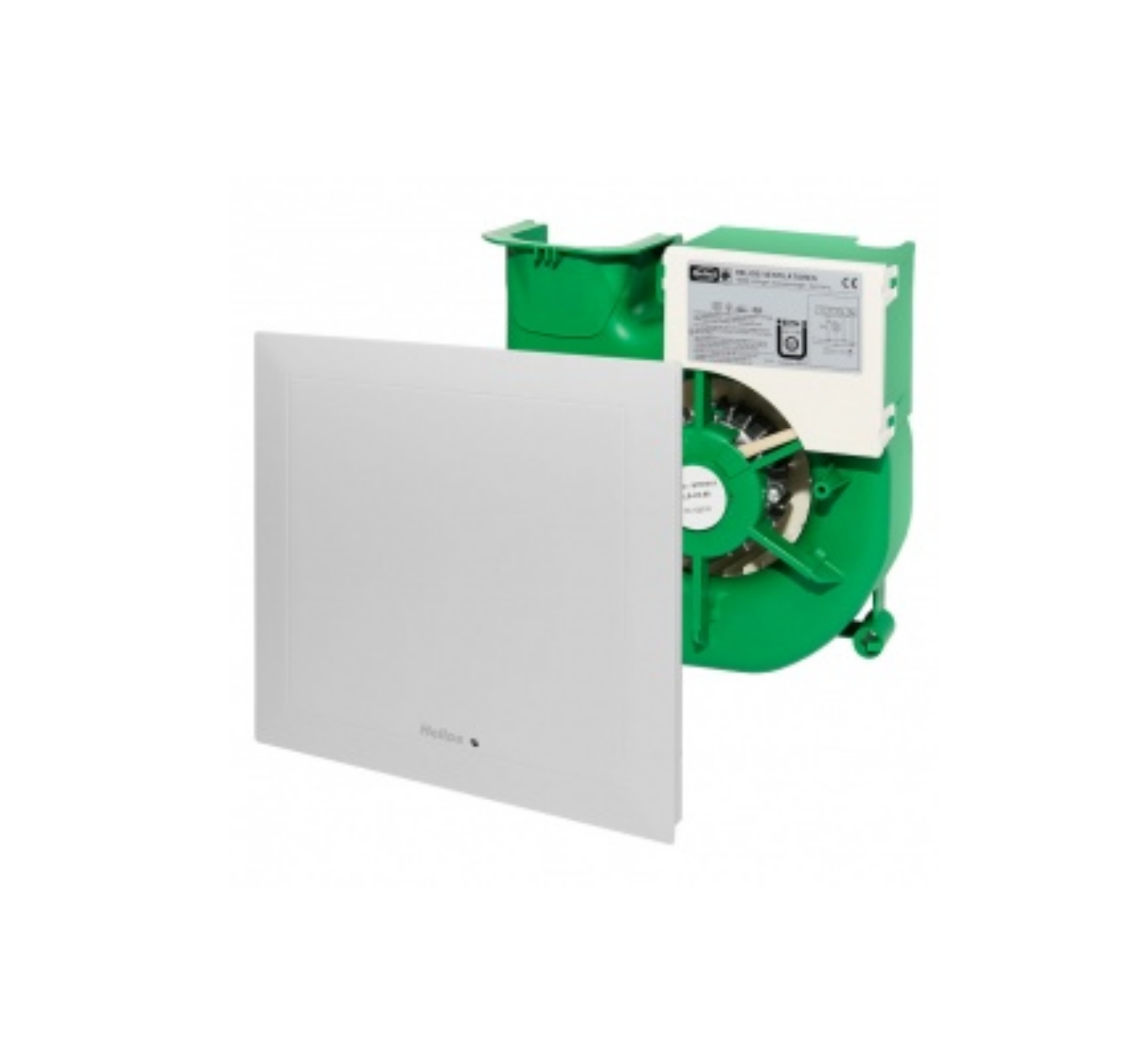

Helios Fans ELS EC 100÷60÷35

The Helios ELS EC 100÷60÷35 is a versatile fan insert designed for efficient ventilation with three adjustable volume flow levels of 100, 60, and 35 m³/​h. It features an adjustable switch-on delay (0 or 45 seconds), selectable run-on times (6, 10, 15, or 21 minutes), and interval operation options (0, 8, 12, or 24 hours) for optimal demand-controlled ventilation.

This fan incorporates a spiral housing with an aerodynamically optimized radial impeller, providing high pressure output while maintaining impressively low noise levels, thanks to Helios’s ultraSilence® technology.

Installation is quick and tool-free with a plug-in coupling that ensures simultaneous electrical contact closure, making setup straightforward and efficient.

Powered by a new energy-saving EC motor housed in a closed cast aluminium casing, the fan is environmentally friendly, economical, and maintenance-free. Its flat, award-winning façade made from high-quality alpine white plastic offers a sleek and modern appearance.

The unit comes standard with a permanent, dishwasher-safe filter and an optical filter cleaning indicator that signals when maintenance is needed, ensuring optimal air quality and fan performance.
