Helios Fans DVW 90

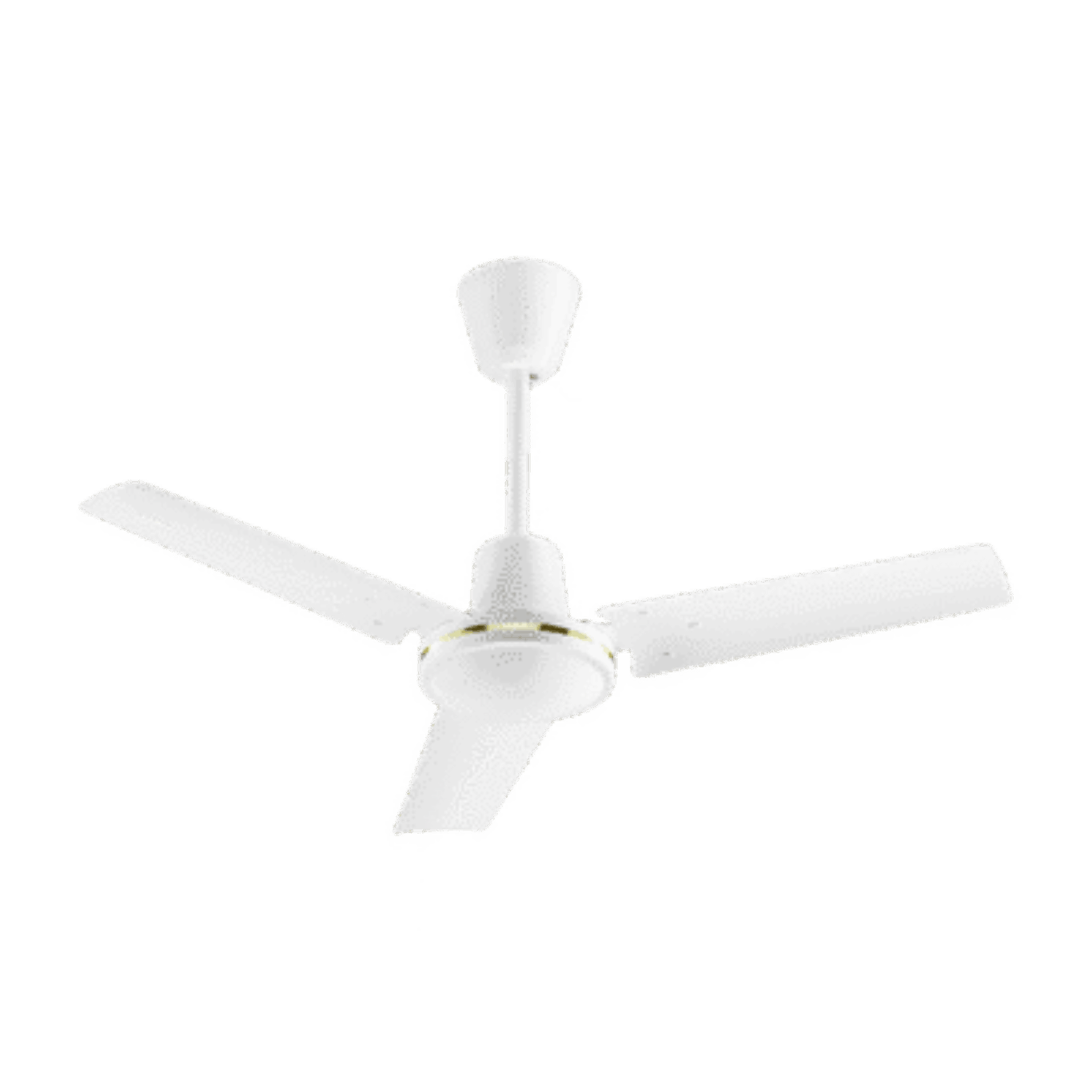

The Helios DVW 90 ceiling fan features a durable metal build with a timeless design, finished in stove-enamelled white. Its enclosed motor is both maintenance-free and interference-free, making it ideal for continuous operation. Engineered for quiet performance, the fan is mounted with vibration-damping suspension to reduce operational noise. Installation is simple, with only the three impeller blades needing to be attached on delivery.

The unit comes with both a short and long pendulum tube, allowing for adjustable suspension height. Airflow speed is adjustable using the optional TSW 0.3 five-step speed controller. Safety is assured with TÜV GS certification and a safety cable in accordance with DIN EN 60335−2−80. A minimum installation height of 2.3 metres from floor to blade edge is required to meet accident prevention standards (UVV).

Airflow direction can be reversed, either through a fixed connection or using the DSEL 2 reversing switch (available separately). For reverse (upward) airflow, a minimum starting voltage of 100 V is necessary.
