DIF560 : Helios Fans DIF 560
Helios / (DIF560)
| Code & Description | Price | |
|---|---|---|
|
DIF560 : Helios Fans DIF 560
Note: £284.95 + VAT for new customers using 'WELCNFAN1' discount code!
|
£335.24 + VAT £402.29 | |
We accept :
15% discount with code ‘welcnfan1’
Note: Code can only be used once per customer. Discount codes are entered after selecting shipping method.
Need it today? We offer same day deliveries
Same day deliveries locally & nationwide (UK mainland only). Price on request — Send message with your order, or call 0161 864 1777.

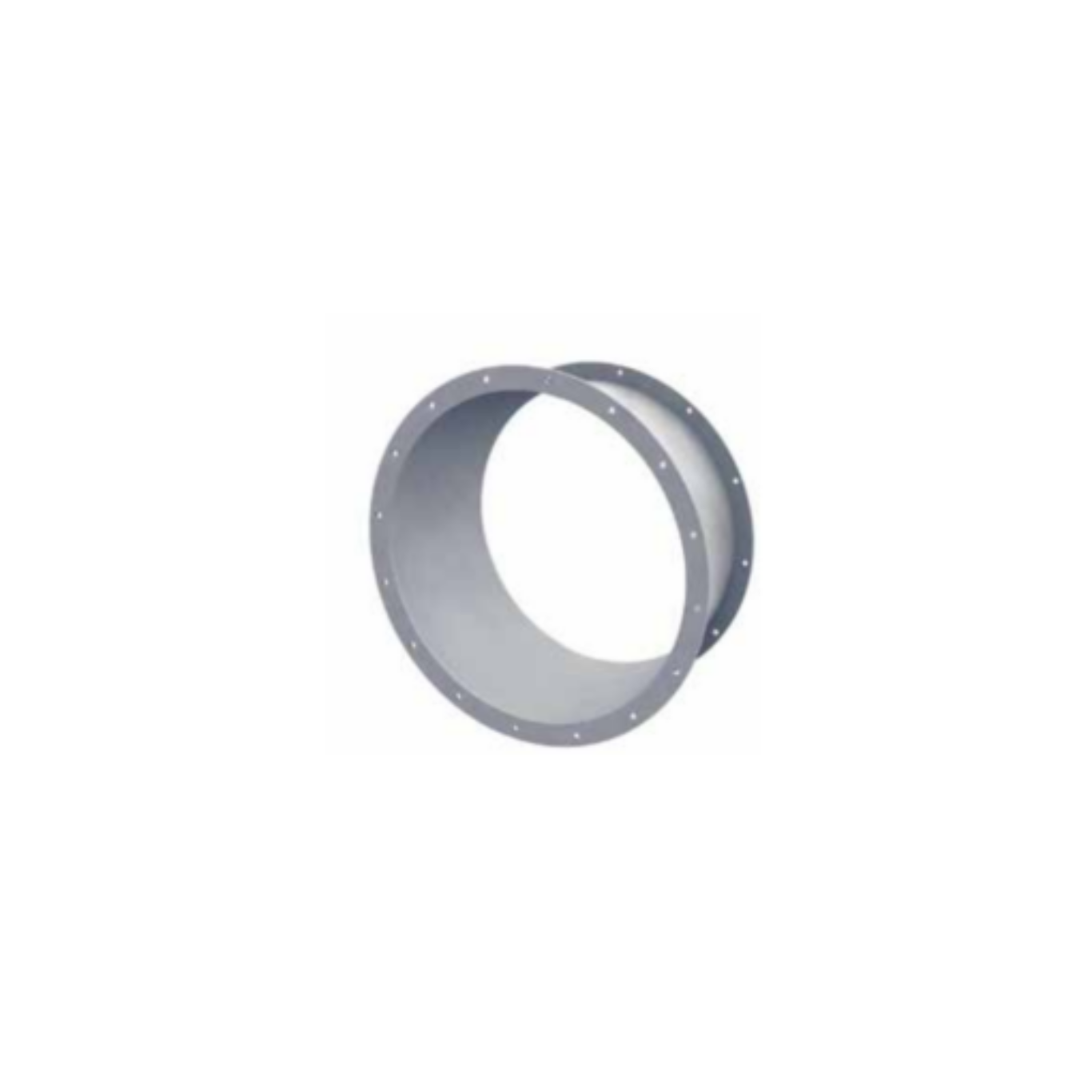

The Helios DIF 560 is a high-efficiency diffuser engineered to maximize pressure recovery in ventilation systems. Its aerodynamic design creates a size increase that reduces airflow velocity, converting dynamic pressure into static pressure. The unit also functions as an adapter for transitioning to a larger duct size.
It is specifically suited for installation directly behind a fan or at the end of a pipeline, serving as an external outlet with reduced discharge losses. For installations with a free outlet, a protection grille (type SG) in the next size up can be fitted to ensure safety.
Crafted from hot-dip galvanized steel, the DIF 560 features a robust build with a double-sided welded flange. The hole pattern follows the DIN 24155 standard, ensuring easy integration with standard duct components.
