Helios Fans AMW 315/4

Helios

Helios Fans AMW 315/4

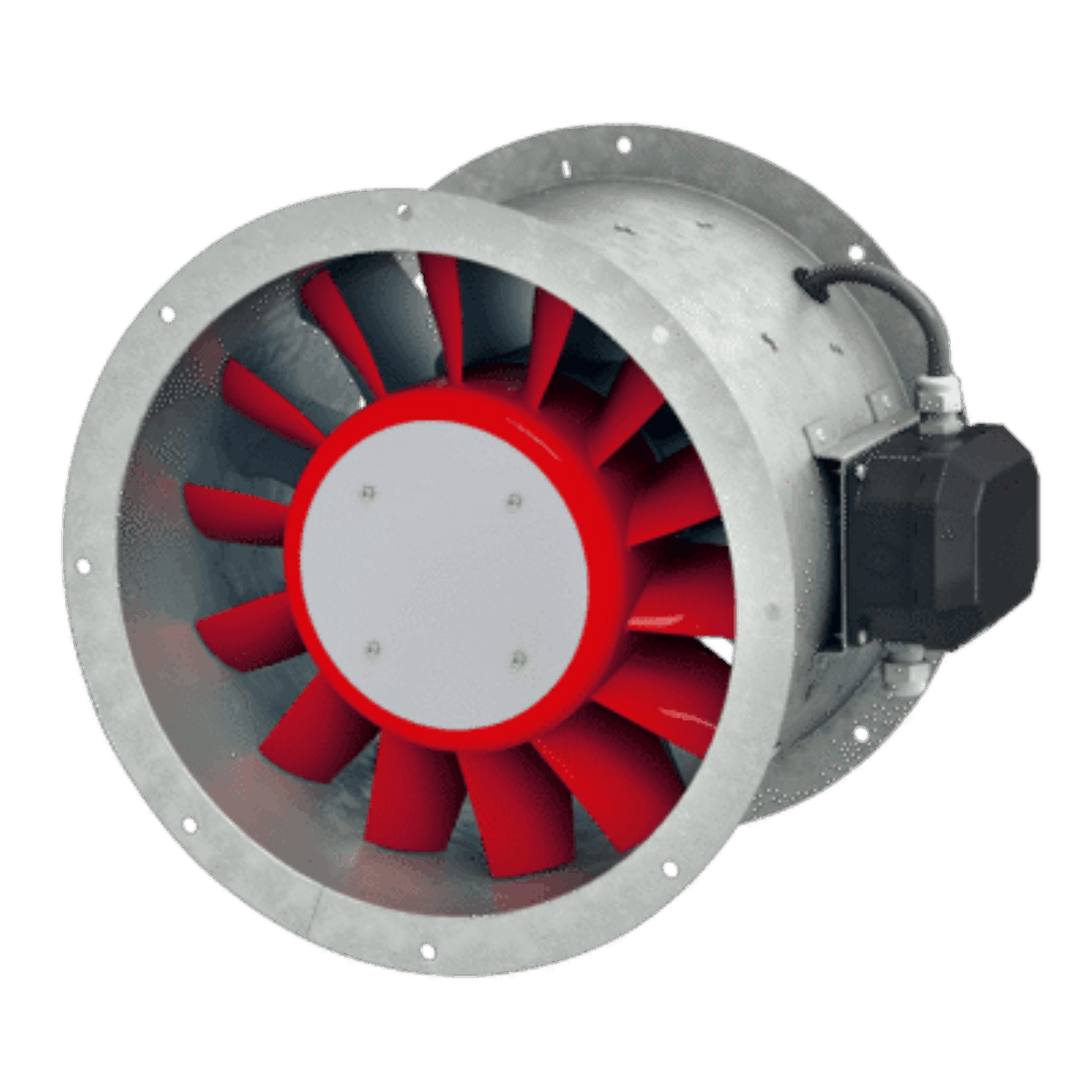

The Helios AMW 315/4 is a medium pressure axial fan designed with a long cylindrical duct casing made of sheet steel, which encloses the impeller and motor. It includes flanges on both sides with hole patterns conforming to DIN 24155 Pt.3, ensuring straightforward installation.

This fan is equipped with an axial impeller consisting of 14 aerodynamically profiled polymer blades, dynamically balanced to DIN ISO 1940 – 1 class 6.3 for smooth, low-vibration performance. The totally enclosed AC condenser motor is maintenance-free and fitted with built-in thermal contacts for protection. Speed control is achieved via voltage reduction. The motor runs on low-noise sealed-for-life ball bearings and is not reversible.

Prices & Options
Code & Description Price
AMW315/4 : Helios Fans AMW 315/4 £1,037.00 + VAT £1,244.40
We accept : Visa, MasterCard, Maestro & PayPal
