Helios Fans AMW 225/2

Helios

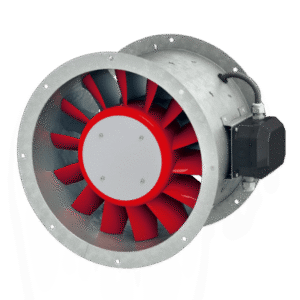

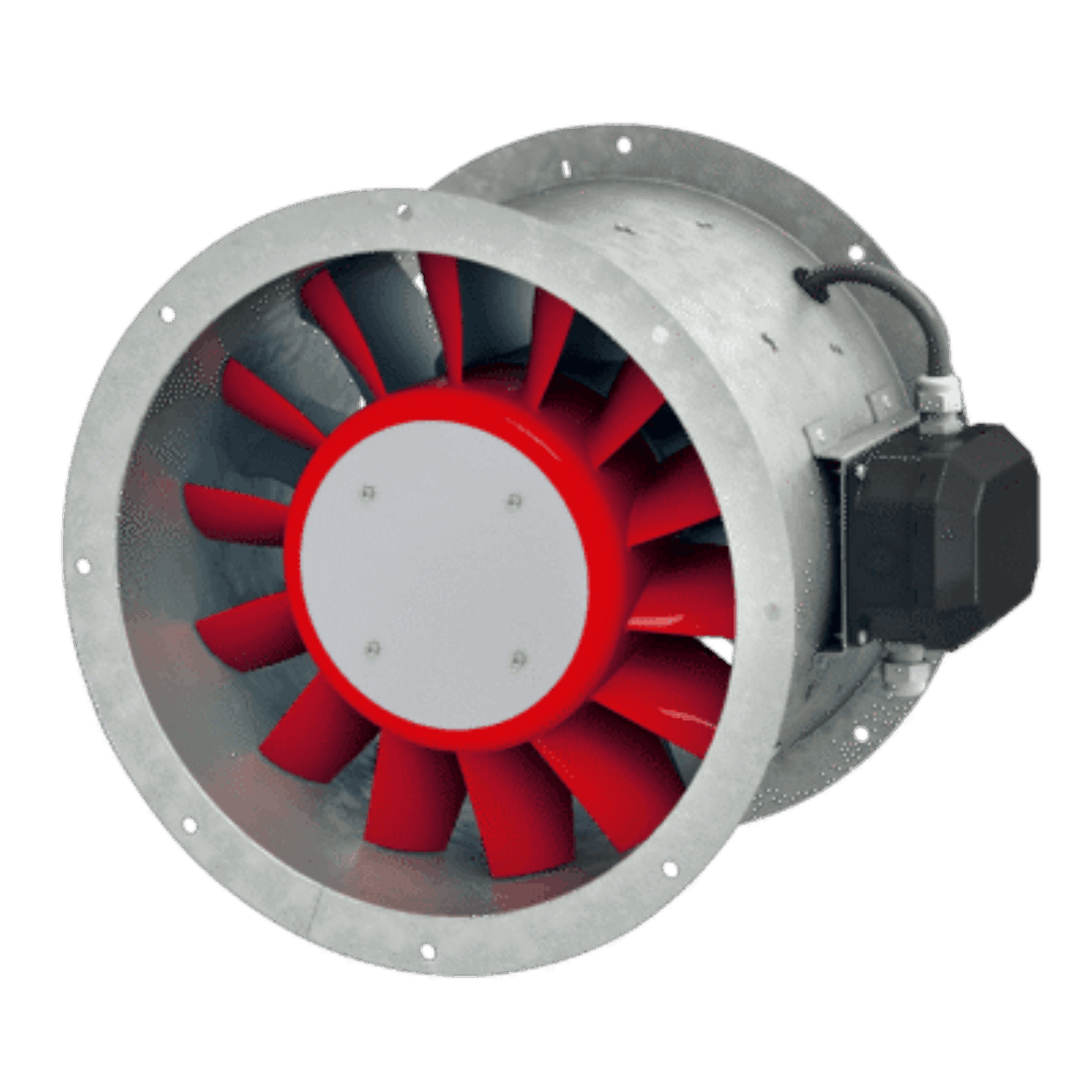

Helios Fans AMW 225/2

Medium pressure axial fan with cylindrical duct casing, flanges on both sides, direct driven.

Long duct casing from sheet steel, enclosing impeller and motor, flanges on both sides with hole pattern to DIN 24155 Pt.3

Axial impeller with 14 aerodynamically profiled blades from polymers. Dynamically balanced to DIN ISO 1940 – 1, class 6.3 for low-vibration operation.

Totally enclosed, AC condenser motor, maintenance-free, with built-in thermal contacts, speed controllable by voltage reduction, with low-noise sealed for life ball bearings, not reversible.

Prices & Options
Code & Description Price
AMW225/2 : Helios Fans AMW 225/2 £834.00 + VAT £1,000.80
We accept : Visa, MasterCard, Maestro & PayPal
