Helios Fans AMD 630/2

Helios

Helios Fans AMD 630/2

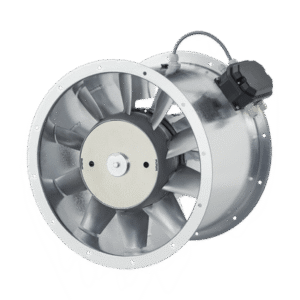

The Helios AMD 630/2 is a robust, high-capacity axial fan designed for demanding industrial and commercial ventilation systems. With a 630mm diameter cylindrical steel housing and DIN 24155 Part 3 compliant flanges, this fan ensures seamless integration into large-scale duct networks.

It features a 2‑pole, 3‑phase direct-drive motor delivering high rotational speed and maximum airflow output, making it ideal for high-demand applications. The motor is maintenance-free, fitted with sealed-for-life ball bearings, integrated thermal contacts, and IP54 protection, offering reliable operation even under tough environmental conditions.

Equipped with a 14-blade aerodynamically optimized polymer impeller, dynamically balanced to DIN ISO 1940 – 1 (class 6.3), the fan operates with minimal vibration and consistent airflow. It also allows speed control via voltage reduction, enabling flexible performance across various usage scenarios.

Capable of handling air temperatures up to 40°C (controlled) or 60°C (uncontrolled), the AMD 630/2 is ideal for use in HVAC systems, manufacturing facilities, equipment cooling setups, and other industrial ventilation applications.

The Helios AMD 630/2 delivers unmatched airflow, durable performance, and installation flexibility — making it a reliable solution for powerful industrial ventilation.

Prices & Options
Code & Description Price

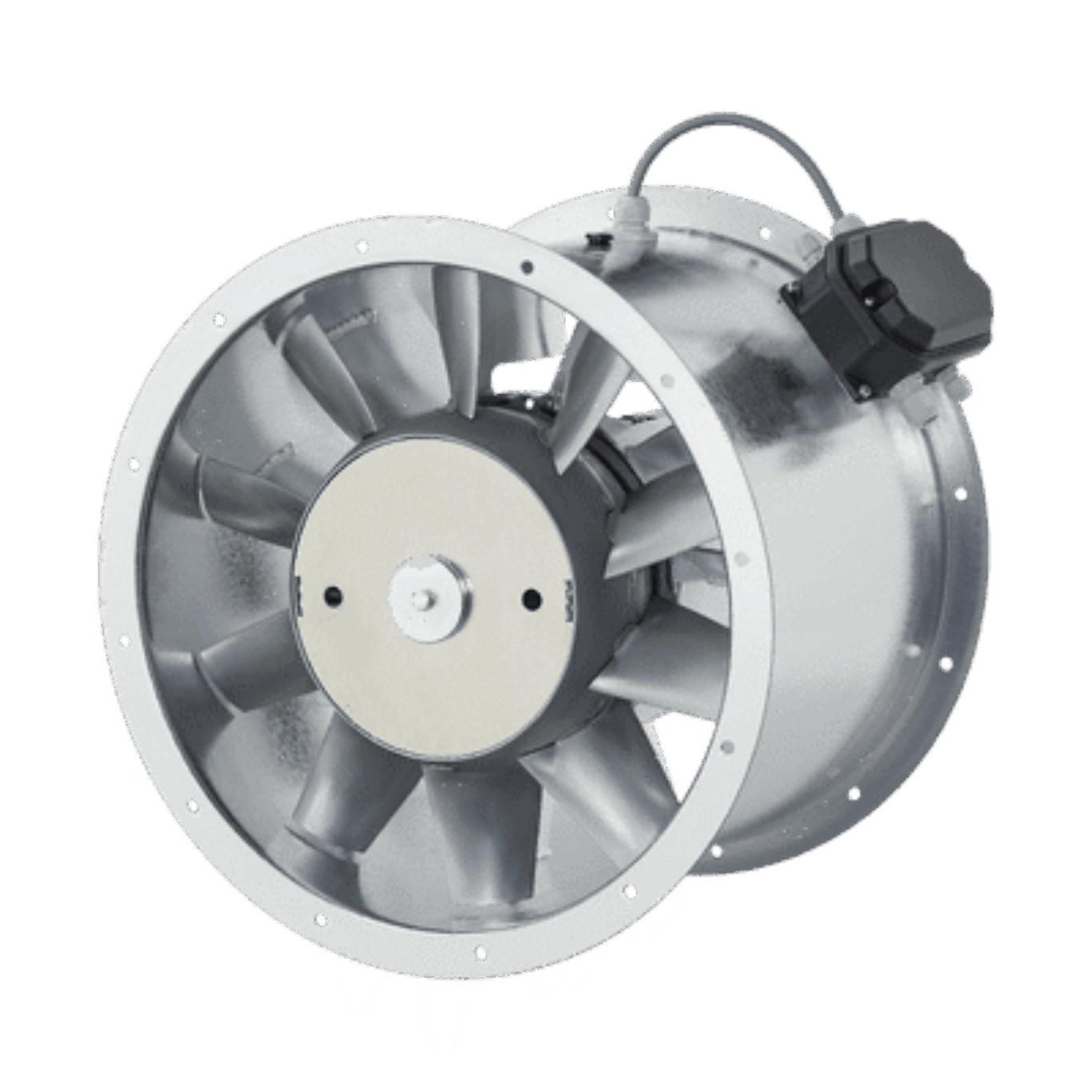

AMD630/2 : Helios Fans AMD 630/2 £3,367.00 + VAT £4,040.40
We accept : Visa, MasterCard, Maestro & PayPal
