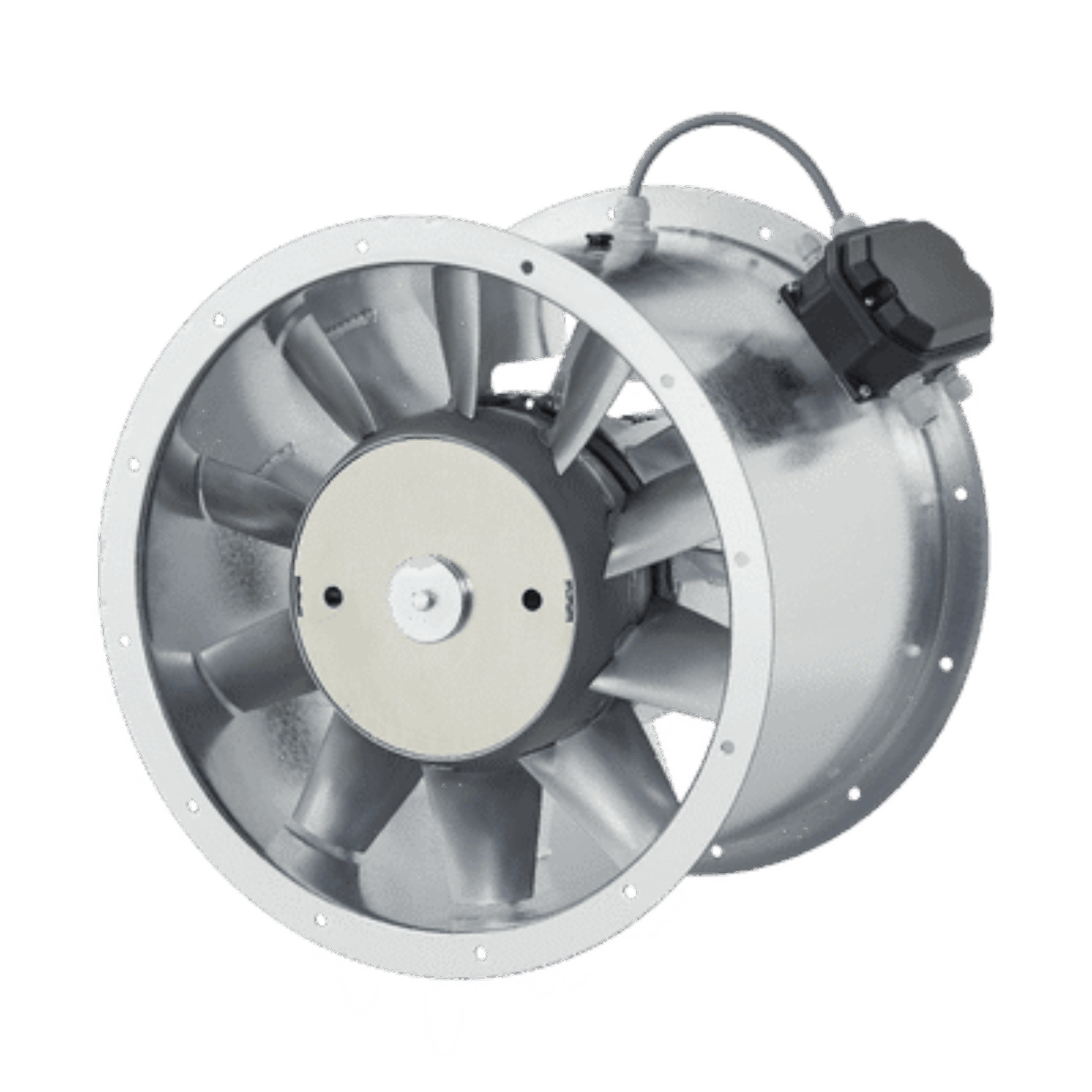

Helios Fans AMD 560÷4÷2

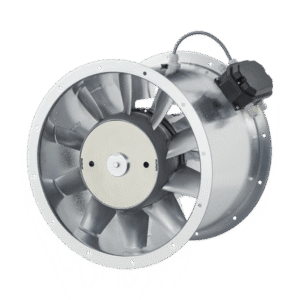

The Helios AMD 560÷4÷2 is a high-performance axial fan built for medium-pressure ventilation in demanding industrial and commercial environments. With a 560mm diameter galvanized steel cylindrical housing and DIN 24155 Part 3 standard flanges, this fan is easy to install into larger ducted ventilation networks.

This model is equipped with a 4‑pole, 3‑phase dual-speed direct-drive motor, enabling adjustable airflow for varying ventilation needs — from energy-saving low speed to powerful high-speed performance. The motor is maintenance-free, fitted with sealed-for-life ball bearings, thermal contacts for motor protection, and rated IP54 for reliable performance in harsh conditions.

The 14-blade polymer impeller, dynamically balanced to DIN ISO 1940 – 1 (class 6.3), ensures smooth, quiet, and low-vibration operation. The fan also supports speed control via voltage reduction, enhancing its versatility in different operating environments.

Capable of handling air temperatures up to 40°C (controlled) or 60°C (uncontrolled), the AMD 560÷4÷2 is ideal for ventilation systems in manufacturing plants, warehouses, HVAC installations, and commercial facilities.

With its flexible dual-speed motor, rugged construction, and efficient airflow, the Helios AMD 560÷4÷2 is a powerful solution for modern industrial ventilation challenges.
