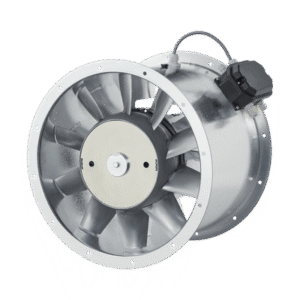

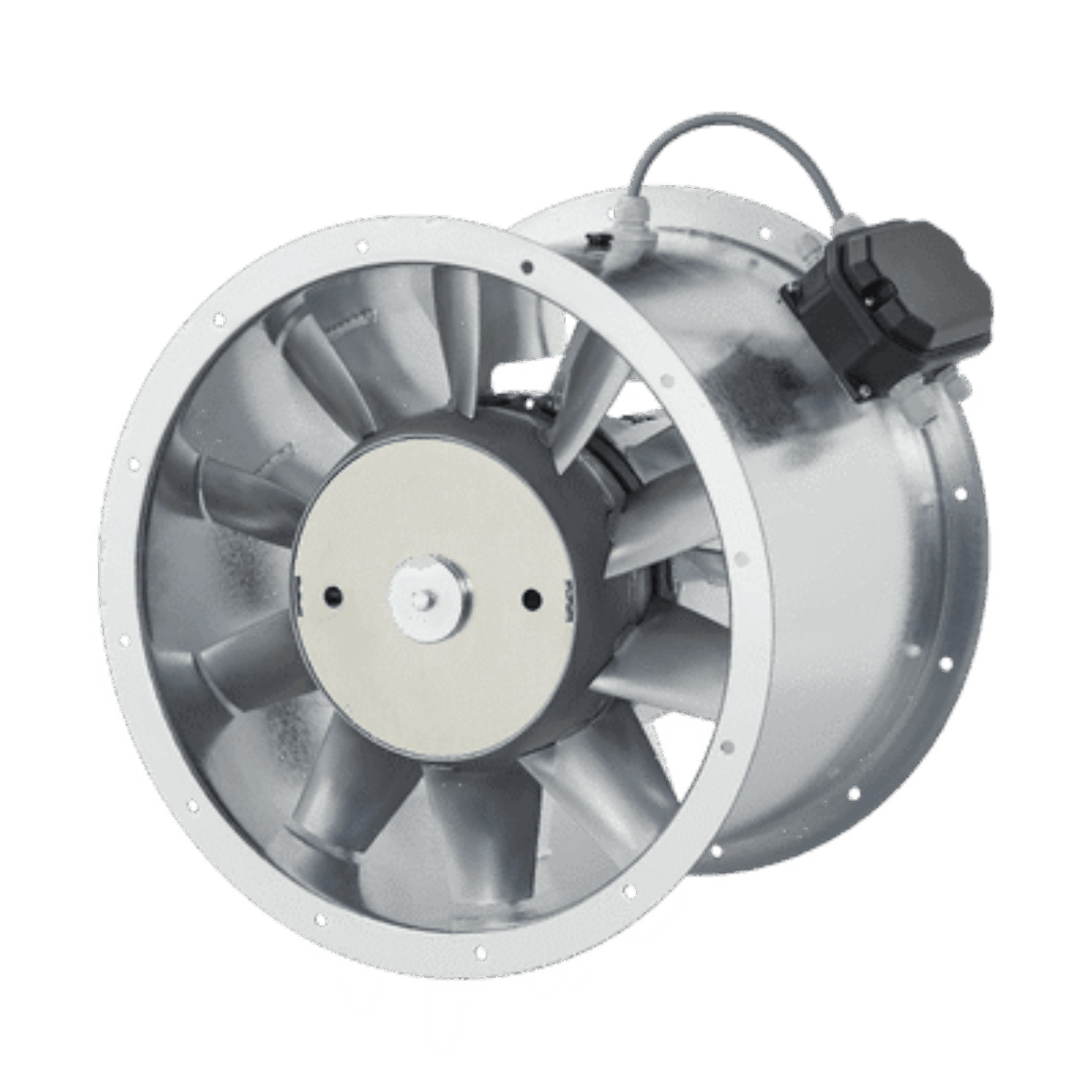

The Helios AMD 560/2 is a heavy-duty axial fan designed for high-performance air movement in large industrial and commercial ventilation systems. With a 560mm diameter galvanized steel cylindrical casing and standard DIN 24155 Part 3 flanges, it offers easy and secure integration into large duct networks.
Powered by a 2‑pole, 3‑phase direct-drive motor, the AMD 560/2 delivers high rotational speed and strong airflow, making it ideal for applications requiring significant air volume and pressure. The motor is maintenance-free, featuring sealed-for-life ball bearings, integrated thermal protection, and an IP54 rating, ensuring durability in demanding conditions.
The fan uses a 14-blade aerodynamically optimized polymer impeller, dynamically balanced to DIN ISO 1940 – 1 (class 6.3), which provides stable, low-vibration operation even at high speeds. It is also speed-controllable via voltage reduction, giving you full control over performance as needed.
Designed to handle air temperatures up to 40°C (controlled) or 60°C (uncontrolled), the AMD 560/2 is perfect for industrial HVAC systems, large-scale air extraction, equipment cooling, and other high-demand ventilation setups.
Built for power, performance, and longevity, the Helios AMD 560/2 is the ideal solution for robust, high-capacity ventilation systems.
