560mm dia Flange – suits any manufacturer of fans
Elta, Flakt Woods, Helios, Soler and Palau, Systemair, Vent-Axia, Ziehl-Abegg
Prices & Options
suits any manufacturer of fans

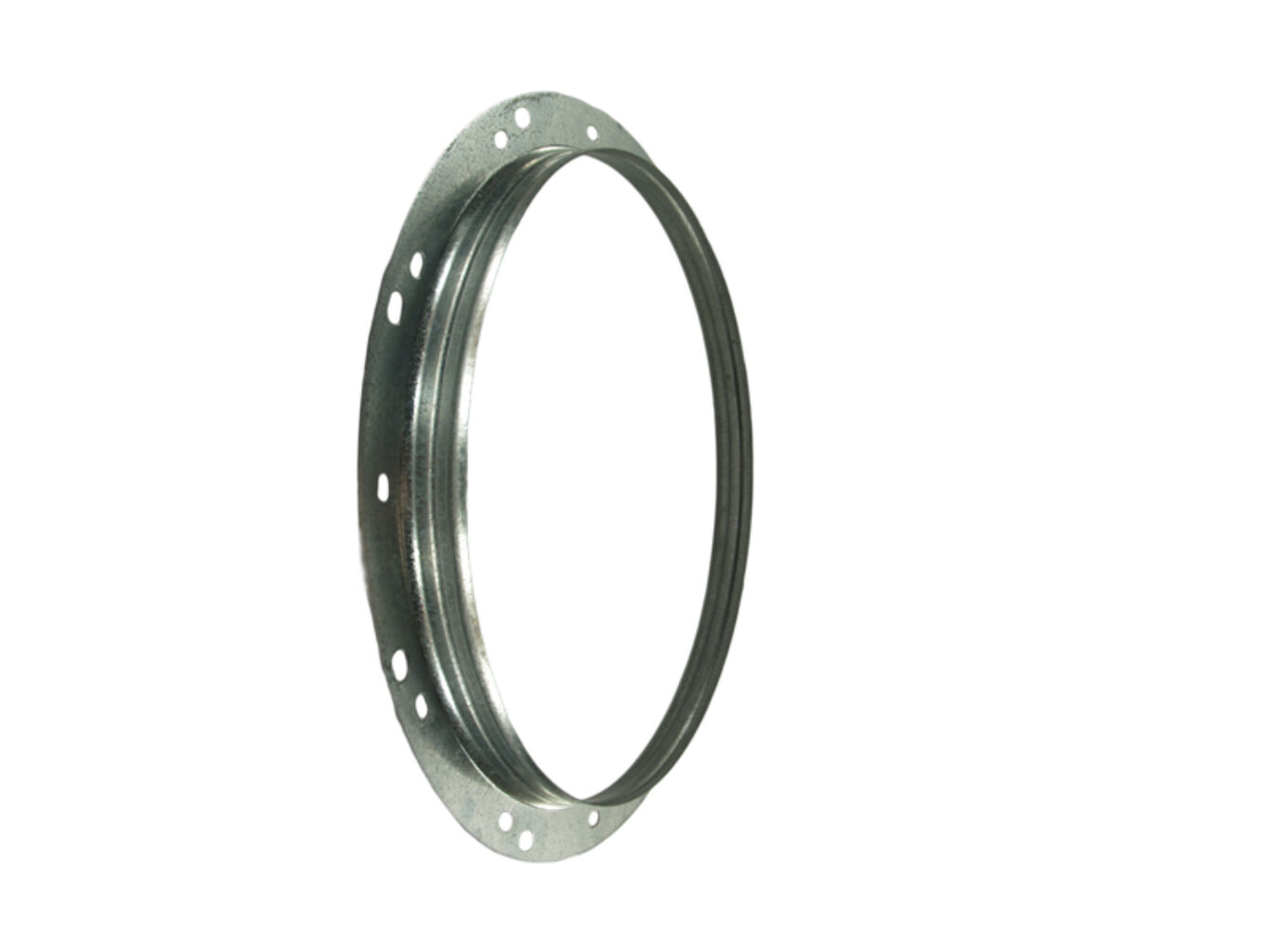

560mm dia Flange used to bolt directly to any manufacturer of Fans, as part of a full ancillary package or for the fan to mount inline in ducting.
This flange is unique because it is designed to fix to UK and European PCD detail, meaning this flange will fix to any manufacturers fans
Can also be used to fix directly to a Silencer
Can also be used to fix directly to ducting
Manufactured from pre Galvanised sheet
| Code & Description | Price | |
|---|---|---|
| cp07-lflan-0560 : 560mm dia Flange | £29.79 + VAT £35.75 | |
We accept :
15% discount with code ‘welcnfan1’
Note: Code can only be used once per customer. Discount codes are entered after selecting shipping method.
Need it today? We offer same day deliveries
Same day deliveries locally & nationwide (UK mainland only). Price on request — Send message with your order, or call 0161 864 1777.
