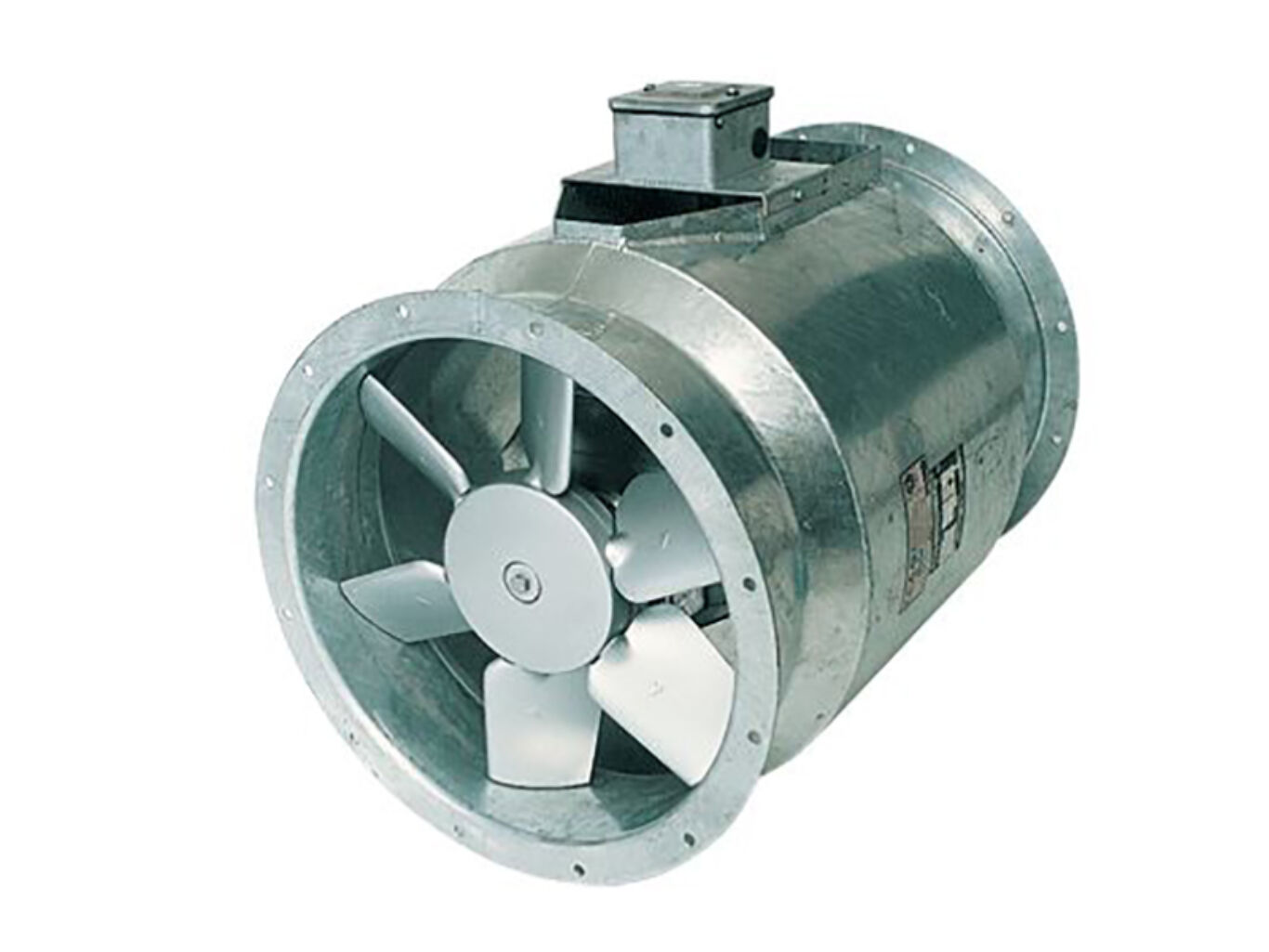

50JM.BIF (200)/20/4/6/32 3PH Flakt Woods Bifurcated fan
Flakt Woods
Prices & Options
Another great fan from FlaktWoods, Bifurcated (sometimes shortened to Bifs or Bif Fans) are inline axial flow fans where the motor has been taken out of the airstream. This allows the fan to operate at higher temperatures.
Available sizes 400mm – 630mm from stock
800mm and 1000mm ring for availability
The Casings are spun sheet steel, then hot dipped galvanised to give a finish highly resistant to corrosion and can be mounted external and internal
The impeller (the bit that goes around and moves the air) is manufactured die cast aluminium
The motors are totally enclosed with class F insulation with protection to IP55.
The fans can be installed horizontal or vertical
They can be run up to 200Deg Continuous temperature
All suitable for speed control via inverter
| Code & Description | Price | |
|---|---|---|
| dn245007 : 50JM.BIF (200)/20/4/6/32 3PH industrial fan (Bifurcated) - was known as DN245007 | £1,983.96 + VAT £2,380.75 | |
We accept :
15% discount with code ‘welcnfan1’
Note: Code can only be used once per customer. Discount codes are entered after selecting shipping method.
Need it today? We offer same day deliveries
Same day deliveries locally & nationwide (UK mainland only). Price on request — Send message with your order, or call 0161 864 1777.
