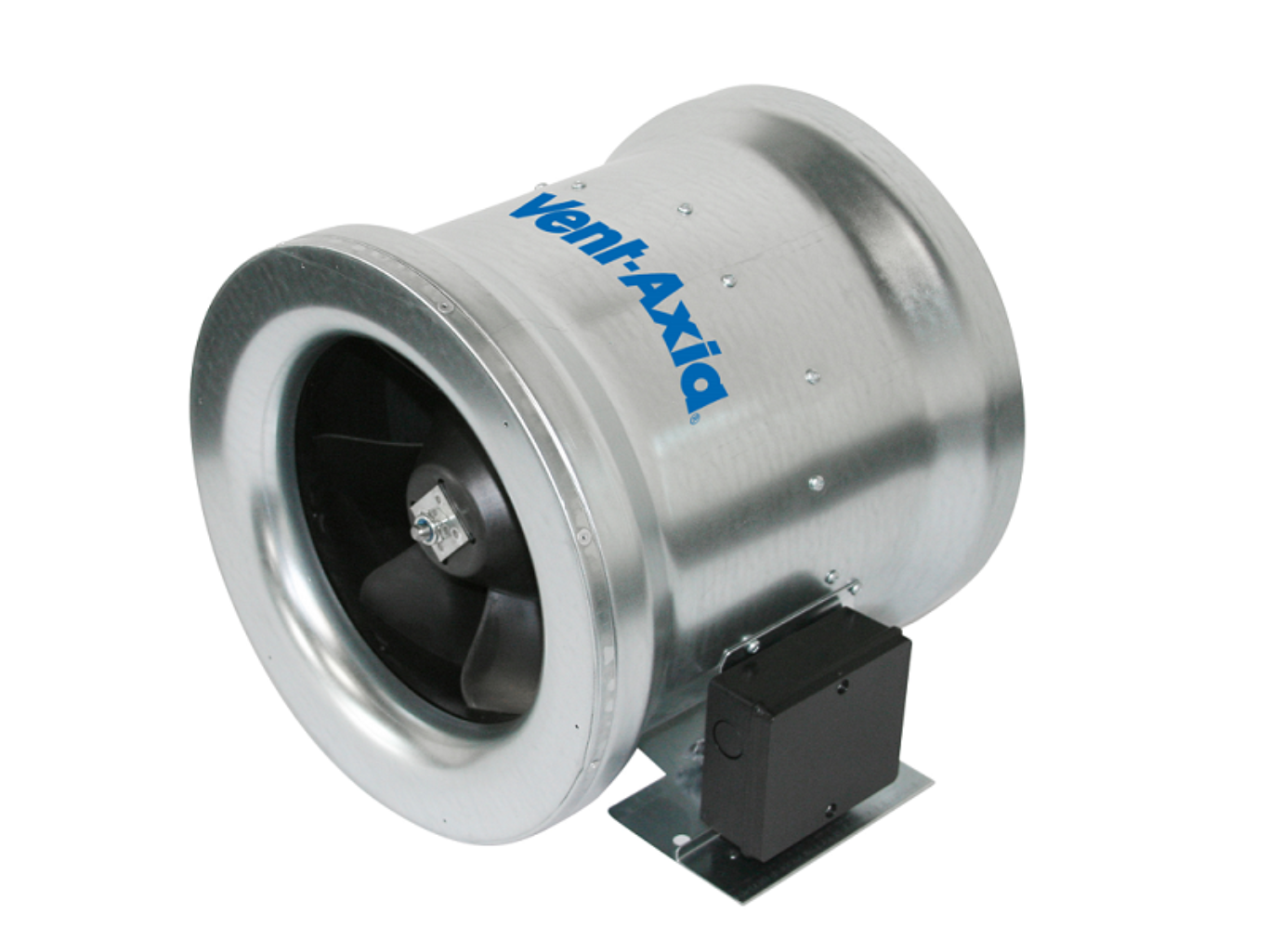

Vent Axia ACM315 part number 17112010
Vent-Axia
Prices & Options
The Vent Axia ACM range of energy efficient Mixed Flow In-Line fans that are now quieter than any other product on the market. ACM is now in a range of six products which have been designed for use with rigid and flexible ducting. In Line Mixed Flow fans offer two and half times the pressure of conventional axial fans, are dimensionally more compact making them ideal for many ducted applications. The impeller blade design with guide vanes provides optimum pressure characteristics and simple connectivity and quieter more efficient running provides the complete solution. The ACM Mixed Flow In-Line fan can operate in both horizontal and vertical positions and can be mounted to meet its optimum performance.
The ACM 315 can only be speed controlled using a Transformer Type Speed Controller.
62dB(A) at 1.5 metres from the listener
56dB(A) at 3 metres from the listener
| Code & Description | Price | |
|---|---|---|
| ACMM315 17112010 : Vent Axia ACM315 part number 17112010 | £316.24 + VAT £379.49 | |
We accept :
Downloads
- Catalogue Pages | 845.43 KB
- Installation & Wiring Instructions | 399.09 KB
15% discount with code ‘welcnfan1’
Note: Code can only be used once per customer. Discount codes are entered after selecting shipping method.
Need it today? We offer same day deliveries
Same day deliveries locally & nationwide (UK mainland only). Price on request — Send message with your order, or call 0161 864 1777.
