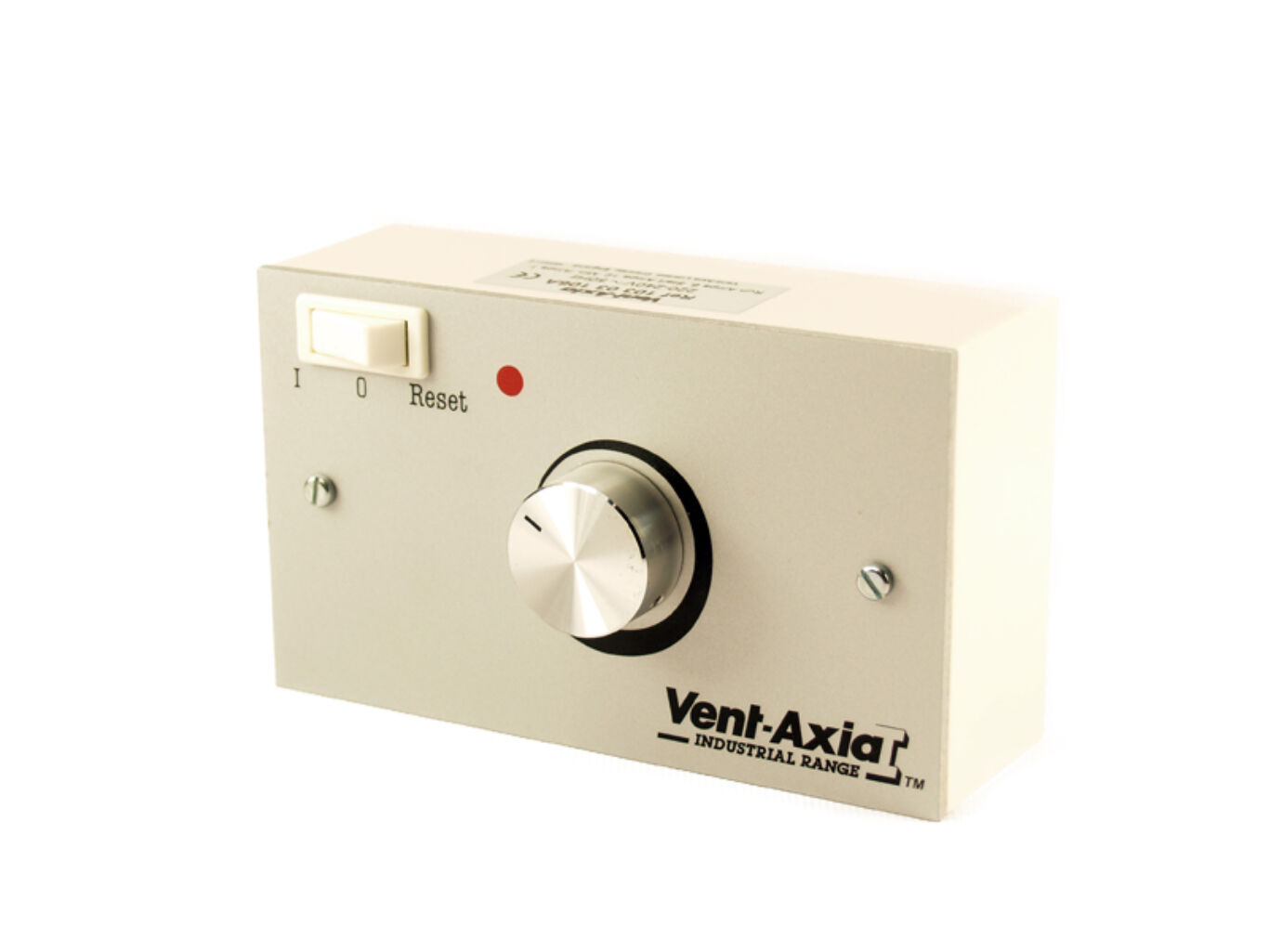

Vent Axia 10303106A fan speed controller

Vent-Axia

Vent Axia 10303106A fan speed controller

Please note the 10303106A is obsolete, we would offer an ME1.6 as a possible alternative. The ME1.6 does not have any Thermal Protection connections and will be 148mm Wide x 87mm High x 62mm deep.

If thermal connections are being used you would need to use an REB 6, 148mm Wide x 88mm high x 95mm Deep.

The Vent-Axia Industrial range of electronic fan speed controllers manufactured by Vent-Axia. This range of fan speed controllers can be used with any Fan / Motor which is single phase – 240 volts and speed controllable using either 2 or 3 wire control (+earth).

  • W10303102M suitable for a maximum full load of 2.5 amps
  • 10303103A suitable for a maximum full load of 3 amps
  • 10303106A suitable for a maximum full load of 6 amps
  • 10303110A suitable for a maximum full load of 10 amps

The Vent-Axia Industrial range of fan speed controllers can be used with any manufacturers fans / motors which are single phase and suitable for speed control via 2 or 3 wires (+earth) including

  • Flakt Woods
  • Ziehl Abegg
  • Elta
  • Helios
  • Solar and Palau
  • Nuaire
  • Systemair
  • Vent-Axia
  • Roof Units

Not sure if your fan is suitable? just ask and we can check for you

Sorry. This product has been discontinued. Please contact us if you require some advice on a suitable alterative and/or spare parts.
