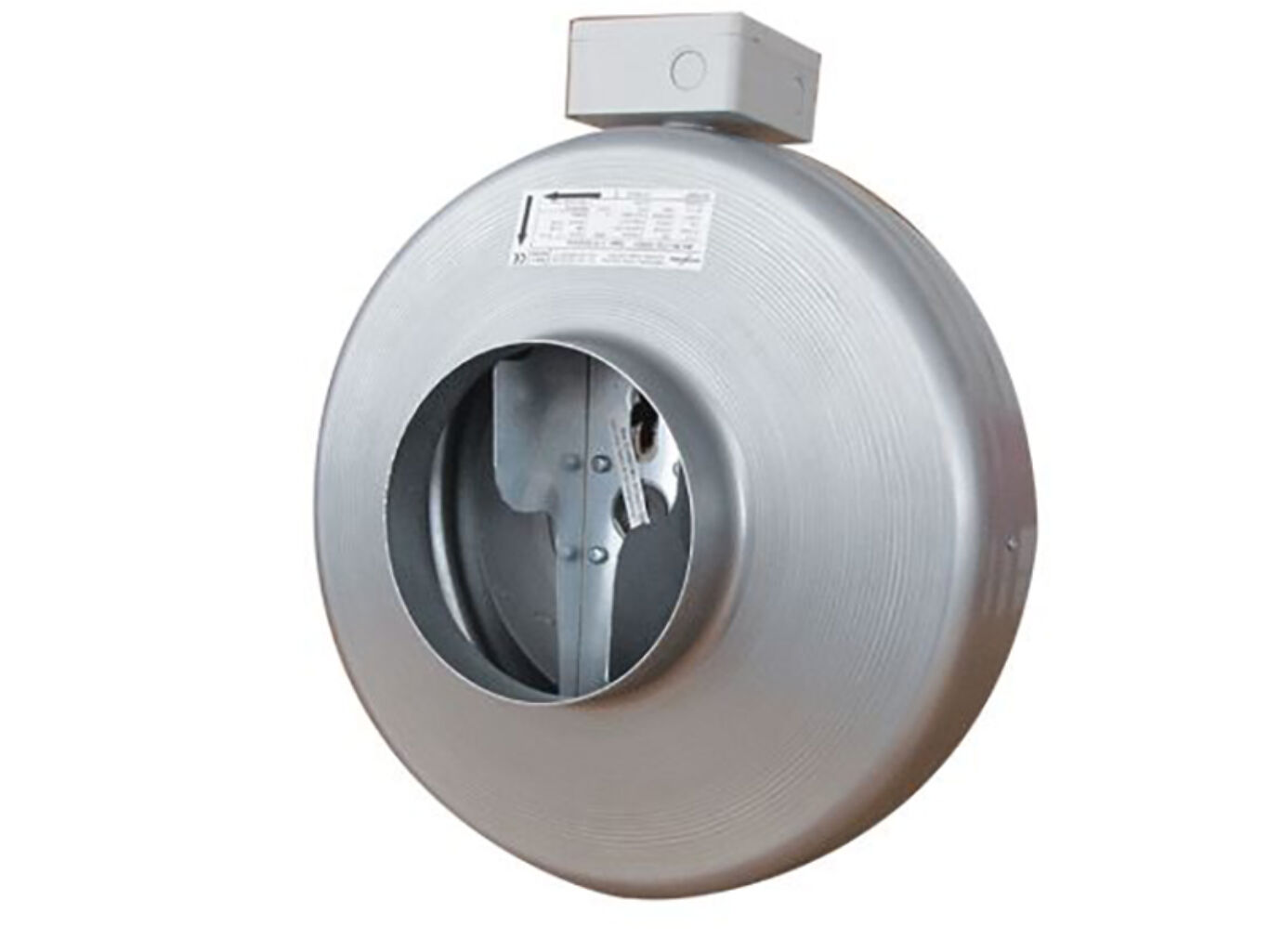

Ropera ILC125 Replaces ILC/2M DC503106
Flakt Woods
Prices & Options
An easy to install 1ph in-line fan from FlaktWoods. These fans have all the advantages of axial flow fans combined with the benefits of radial fan pressure
Features
Diameters: 100 – 315 from stock
Volume: up to 0.65 m³/s
Pressure: up to 920 Pa
Impeller: backward curved centrifugal
Case style: spun steel
Case coating: pregalvanised sheet steel
Can be installed horizontally or vertical
Location: internal only
IP rating: IP44/IP54
Temperature: 45 – 70ºC depending on size
All fans suitable for speed control
Please note the mounting foot needs to be ordered separately.
| Code & Description | Price | |
|---|---|---|
| tf125012 : Ropera ILC125 Replaces ILC/2M DC503106 | £88.12 + VAT £105.74 | |
| TF125000 : Woods Ropera ILC125 Inline Centrifugal Fan | £88.12 + VAT £105.74 | |
We accept :
15% discount with code ‘welcnfan1’
Note: Code can only be used once per customer. Discount codes are entered after selecting shipping method.
Need it today? We offer same day deliveries
Same day deliveries locally & nationwide (UK mainland only). Price on request — Send message with your order, or call 0161 864 1777.
