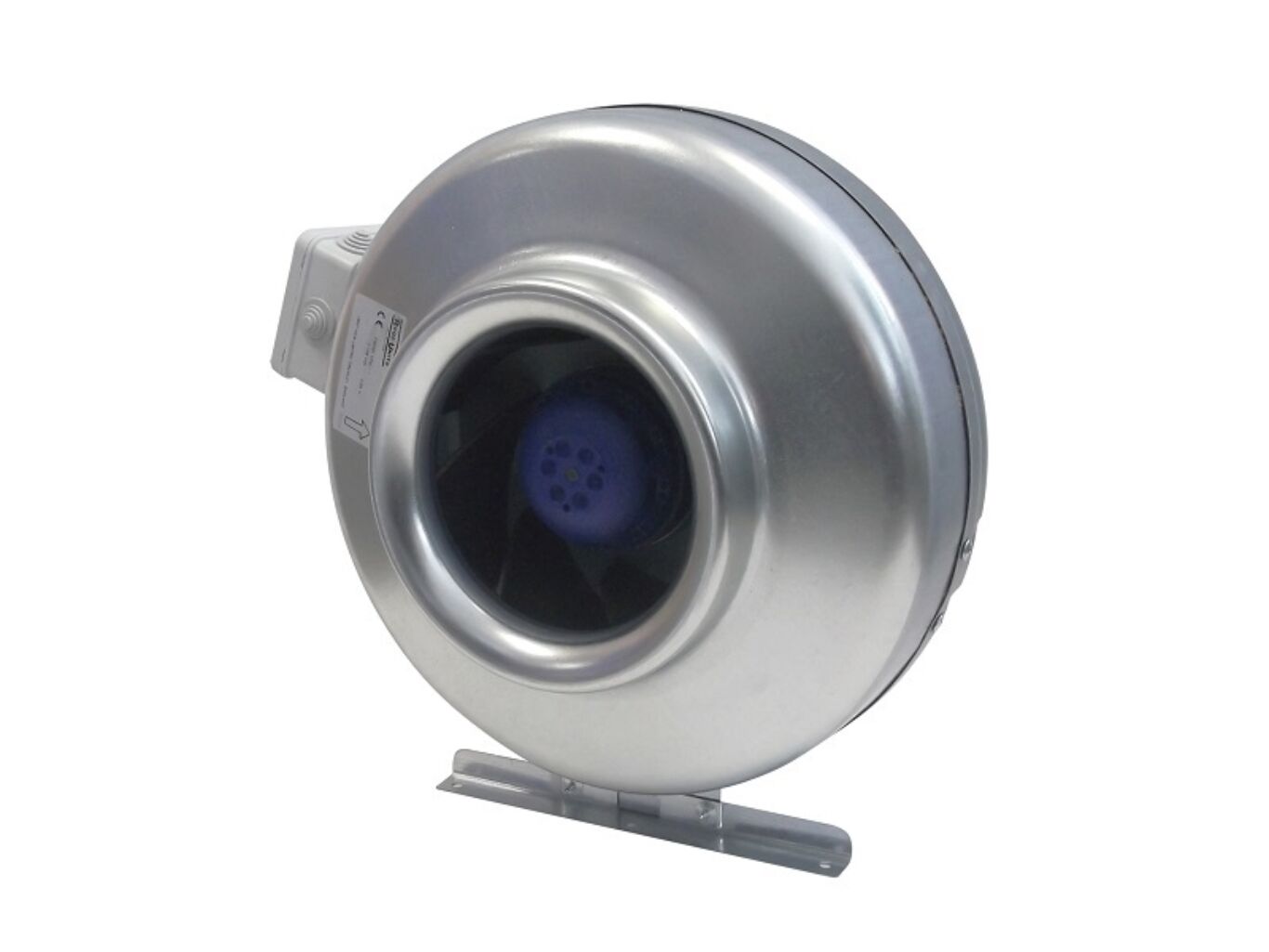

Vent Axia SDX125C Inline Metal Centrifugal Fan
Vent-Axia
Prices & Options
The SDX Euroflow In-line Centrifugal fan from Vent Axia. These fans have all the advantages of axial fans combined with the benefits of radial fan pressure. The fans are designed with an efficient backward curved impeller and external rotor motor to ensure a compact design offering high performance and low noise levels.
Features
Diameters: 100 – 315 from stock
Volume: up to 0.35 m³/s
Pressure: up to 500 Pa
Impeller: backward curved centrifugal
Case style: pressed steel
All models supplied with a simple mounting foot
Can be installed horizontally or vertical
Location: internal only
IP rating: IP44 motor IP54 terminal box
Temperature: ‑25 to +60ºC
Electrical Supply: 220V/1ph/50Hz
All fans suitable for speed control
Motors are fitted with an internal manual reset thermal protection, to protect against the motor overheating.
- 30dB(A) at 1.5 metres from the listener
- 24dB(A) at 3 metres from the listener
| Code & Description | Price | |
|---|---|---|
| SDX125C : Vent Axia SDX125C Inline Metal Centrifugal Fan | £56.91 + VAT £68.29 | |
We accept :
Downloads
- Catalogue Pages | 116.36 KB
- Installation and Wiring Instructions | 493.43 KB
15% discount with code ‘welcnfan1’
Note: Code can only be used once per customer. Discount codes are entered after selecting shipping method.
Need it today? We offer same day deliveries
Same day deliveries locally & nationwide (UK mainland only). Price on request — Send message with your order, or call 0161 864 1777.
